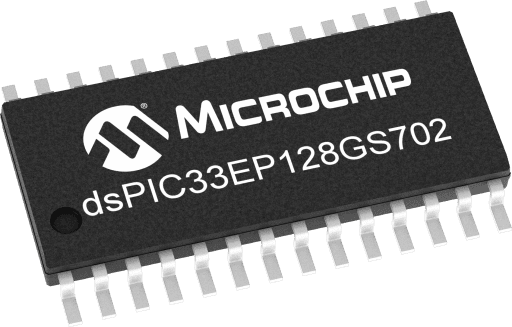

Microchip DSPIC33EP128GS702T-E/MM
Manufacturer No:
DSPIC33EP128GS702T-E/MM
Manufacturer:
Microchip
Description:
100 MIPS, 256KB Flash, 24KB RAM, 80 pins, Motor Control, Digital Power, CAN-FD
Quantity:
In Stock :8869
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Sat, Jun 20 - Sun, Jun 21, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
DSPIC33EP128GS702T-E/MM Information
Microchip DSPIC33EP128GS702T-E/MM technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33EP128GS702T-E/MM.
- Type
- Parameter
- CPU Type
- dsPIC® DSC
- CPU Speed Max MHz (megahertz)
- 70
- Program Memory Size (KB)
- 128
- Multiple Flash Panels
- Yes
- Direct Memory Access (DMA) Channels
- 0
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 125
- Operation Voltage Min.(V)
- 3
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 28
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 4
- ADC Modules
- 5
- ADC Channels
- 11
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 3250
- Number of DACs
- 4
- DAC outputs
- 1
- Max DAC Resolution (bits)
- 12
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip DSPIC33EP128GS702T-E/MM.
Reference Manual:
Supporting Collateral:
Data Sheets:
Application Notes:
Programming Specifications:
Brochures:
dsPIC33EPXXGS70X/80X is a SMPS & Digital Power Conversion Digital Signal Controller. These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as:
• AC to DC Converters
• DC to DC Converters
• Power Factor Correction (PFC)
• Uninterruptible power supply (UPS)
• Inverters
• Embedded Power-Supply Controllers
• Arc Fault Detection
The dsPIC33EPXXGS70X/80X family has many features that help simplify functional safety certifications for ASIL-B and ASIL-C focused applications including:
• Functional Safety Manual and FMEDA available under NDA upon request to your sales office
• MPLAB XC Compiler Functional Safety Manual available with registration
• Learn more about our functional safety capabilities including hardware, software, and supporting collateral
- Operating Conditions
- 3.0V to 3.6V, -40°C to +85°C, DC to 70 MIPS
- 3.0V to 3.6V, -40°C to +125°C, DC to 60 MIPS
- Flash Architecture
- Dual Partition Flash Program Memory with Live Update
- Supports programming while operating
- Supports partition soft swap
- Core: 16-Bit dsPIC33E CPU
- Two 40-Bit Wide Accumulators
- Code-Efficient (C and Assembly) Architecture
- Single-Cycle (MAC/MPY) with Dual Data Fetch
- Single-Cycle Mixed-Sign MUL Plus Hardware Divide
- 32-Bit Multiply Support
- Four Additional Working Register Sets (reduces context switching)
- High-Speed PWM
- Individual Time Base and Duty Cycle for each PWM
- 1.04 ns PWM Resolution (frequency, duty cycle, dead time and phase)
- Supports Center-Aligned, Redundant, Complementary and True Independent Output modes
- Independent Fault and Current-Limit Inputs
- Output Override Control
- PWM Support for AC/DC, DC/DC, Inverters, PFC and Lighting
- Advanced Analog Features
- High-Speed ADC module
- 12-bit with 4 dedicated SAR ADC cores and one shared SAR ADC core
- Configurable resolution (up to 12-bit) for each ADC core
- Up to 3.25 Msps conversion rate per channel at 12-bit resolution
- 11 to 22 single-ended inputs
- Dedicated result buffer for each analog channel
- Flexible and independent ADC trigger sources
- Two digital comparators
- Two oversampling filters for increased resolution
- Four Rail-to-Rail Comparators with Hysteresis
- Dedicated 12-bit Digital-to-Analog Converter (DAC) for each analog comparator
- Up to two DAC reference outputs
- Up to two external reference inputs
- Two Programmable Gain Amplifiers
- Single-ended or independent ground reference
- Five selectable gains (4x, 8x, 16x, 32x and 64x)
- 40 MHz gain bandwidth
- Interconnected SMPS Peripherals
- Reduces CPU Interaction to Improve Performance
- Flexible PWM Trigger Options for ADC Conversions
- High-Speed Comparator Truncates PWM (15 ns typical)
- Supports Cycle-by-Cycle Current mode control
- Current Reset mode (variable frequency)
- Timers/Output Compare/Input Capture
- 16-Bit and up to two 32-Bit Timers/Counters
- Output Compare (OC) modules, Configurable as Timers/Counters
- Input Capture (IC) modules
- Functional Safety support (ISO26262)
- ASIL-B & ASIL-C focused applications
- FMEDA and Safety manual available under NDA upon request to your sales office
- Safety qualified XC16 compiler
- Functional Safety hardware features
- Multiple redundant clock sources
- IO ports read-back
- Analog peripherals redundancies
- Windowed Watchdog Timer
- Hardware traps
- SFR locks
- Write protection
