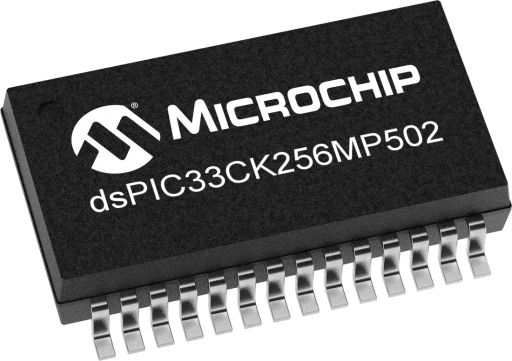

Microchip DSPIC33CK256MP502-H/SS
Manufacturer No:
DSPIC33CK256MP502-H/SS
Manufacturer:
Microchip
Package:
Description:
100 MHz Single-Core 16-bit Digital Signal Controller (DSC) designed for motor control and digital power applications
Quantity:
In Stock :7473
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
DSPIC33CK256MP502-H/SS Information
Microchip DSPIC33CK256MP502-H/SS technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33CK256MP502-H/SS.
- Type
- Parameter
- CPU Type
- dsPIC® DSC
- CPU Speed Max MHz (megahertz)
- 100
- Program Memory Size (KB)
- 256
- Multiple Flash Panels
- True
- Direct Memory Access (DMA) Channels
- 4
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 150
- Operation Voltage Min.(V)
- 3
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 28
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 3
- ADC Modules
- 3
- ADC Channels
- 12
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 3500
- Number of DACs
- 3
- DAC outputs
- 1
- Max DAC Resolution (bits)
- 12
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip DSPIC33CK256MP502-H/SS.
Application Notes:
Supporting Collateral:
Programming Specifications:
User Guide:
Reference Manual:
Data Sheets:
Product Brief:
Microchip’s dsPIC33CK family of digital signal controllers (DSCs) features a 100 MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of digital power, motor control, advanced sensing and control, high-performance general-purpose and robust applications.
The DSCs simplify the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation and provide extended motor life. They can be used to control BLDC, PMSM, ACIM, SR and stepper motors.
In the digital power segment, this family of devices is ideal for designing switched mode power supplies such as AC/DC, DC/DC, UPS and PFC, providing high-precision digital control of Buck, Boost, Fly-Back, Half-Bridge, Full-Bridge, LLC and other power circuits to reach the highest possible energy efficiency.
This dsPIC33CK family supporting offering core-independent touch capabilities, is well suited for complex touch designs that require up to 256KB flash, functional safety, security, CAN/CAN FD and high level of various function and rich peripheral integration.
The DSCs feature advanced analog for advanced sensor interfacing designs. Offering real-time deterministic performance, the DSCs enable high-performance control applications. The rich feature set in this family of devices also make this family a very good fit for high-performance general-purpose and robust applications.
The dsPIC33CK product family has many hardware features that help simplify functional safety certifications for ASIL-B and SIL-2 focused automotive and industrial safety-critical applications. The family offers ISO 26262 and IEC 61508 Functional Safety packages containing FMEDA report, safety manual, diagnostic libraries and more.
• Learn more about Functional Safety capabilities including hardware, software, and supporting collateral
- Operating Conditions
- 3.0V to 3.6V
- -40ºC to +125ºC, DC to 100 MHz
- -40ºC to +150ºC, DC to 70 MHz
- dsPIC33CK DSC Core
- Up to 256 KBytes of Program Flash with ECC and Live Update (dual-partition Flash)
- Up to 24 KBytes of Data SRAM with Memory Built in Self-Test (MBIST)
- Modified Harvard architecture with 16-bit data and 24-bit instructions
- Code efficient (C and Assembly) CPU architecture designed for real-time applications
- 16x 16-bit working registers
- 4 sets of interrupt context saving registers, including ACC and CPU status for fast interrupt handling
- Single-cycle, mixed-sign 32-bit MUL
- Fast 6-cycle hardware 32/16 and 16/16 DIV
- Dual 40-bit fixed point Accumulators (ACC) for DSP operations
- Single-cycle MAC/MPY with dual data fetch and result write-back
- Zero overhead looping support
- High-Speed PWM Module
- 8 independent PWM pairs (16 total outputs) with up to 250ps resolution
- Dead-time insertion for rising and falling edges and dead-time compensation support
- Clock chopping for high-frequency operation
- Fault and current limit inputs
- Flexible trigger configuration for ADC triggering
- Advanced Analog Features
- 3 12-bit 3.5 MSPS ADC Modules each with 2 dedicated SARs and 1 shared SAR cores (3 S&Hs)
- 12, 16, 19, 20 or 24 ADC input channels (depending on package)
- 4 digital comparators for reducing CPU overhead
- 4 oversampling filers up to 256x for increased resolution (up to 16-bits)
- 3 analog comparators (15ns) with dedicated 12-bit DACs with hardware slope compensation
- Up to 3 op amps with internal connection to ADC Module
- Core Independent Touch
- Uses Peripheral Trigger Generator (PTG) and High-speed ADCs
- Ready-to-use touch library support in MPLAB Code Configurator (MCC)
- Functional Safety Support (ISO 26262 and IEC 61508)
- ISO 26262 and IEC 61508 Functional Safety Ready
- ASIL B automotive safety applications – ISO 26262
- SIL 2 industrial safety applications – IEC 61508
- ISO 26262 and IEC 61508 Functional Safety Packages
- Embedded Security
- CodeGuard security together with Flash OTP by ICSP Write Inhibit enables implementing Immutable Secure Boot
- Flash OTP by ICSP Write Inhibit to configure entire Flash as OTP
- Option to disable entry to the debug mode
- User OTP
- Enables implementing robust security use cases together with CryptoAuthentication and CryptoAutomotive devices such as:
- Secure Boot
- Secure Firmware Upgrade
- Secure Communication
- Node Authentication and more
- Timer/Counters/Output Compare/Input Capture
- 10 16-bit timer/counters (up to 4 32-bit)
- 14 PWM or Output Compare (OC) outputs
- 9 Input Captures (IC) pins or internal connections from the CLC or Comparator Modules
- Peripheral Trigger Generator (PTG) for scheduling complex sequences
- 2 Quadrature Encoder Interface (QEI) Modules for optical encoder support
- Communication Interfaces
- 3 UARTs (15 Mbps) with automated protocol handling for LIN/J2602, DMX and IrDA®
- 3 4-wire SPI/I2S up to 40 MHz with dedicated pins
- 3 I2C Modules (up to 1 Mbps) with SMBus support
- CAN Flexible Data Rate (CAN-FD) Module ("50x devices only)
- 2 Single-Edge Nibble Transmission (SENT) Modules for sensor interfacing
- 4 DMA channels supporting UART, SPI, ADC, CAN-FD, IC, OC and Timer data transfers
- Special Features
- 4 Configurable Logic Cell (CLC) Modules with user defined logic gate circuits
- Programmable Pin Select (PPS) for peripheral pin function mapping
- Parallel Master Port (PMP) for external data expansion
- On-chip temperature sensor with direct ADC Module connection
- Clock and Power Management
- On-chip 8 MHz Fast RC (FRC) and 32 kHz Low-Power RC (LPRC) oscillators
- Programmable PLLs with external oscillator clock sources and Reference Clock Output (REFO)
- Fail-Safe Clock Monitor (FSCM) with 8 MHz Back-up Fast RC (BFRC) oscillator
- Low-Power management modes - Sleep, Idle and Doze
- Integrated Power-on Reset (POR) and Brown-Out Reset (BOR)
- Debugger Development Support
- In-Circuit and in application programming and debug support (ICSP)
- On-chip debug trace buffer and run-time watch with 3 complex and 5 simple breakpoints
- IEEE 1149.2 (JTAG) boundary scan support
- Functional Safety hardware features
- Dead-Man Timer (DMT) safety feature clocked by instruction fetches
- Windowed Watch Dog Timer (WDT)
- CodeGuard™ security for program FLASH
- Programmable Cyclic Redundancy Check (CRC)
- FLASH ECC Fault Injection testing feature
- Flash OTP by ICSP™ write inhibit
- RAM Memory Built in Self-Test (MBIST)
- Clock Monitor with multiple redundant clock sources
- Analog peripherals redundancies
- Write protection
- Hardware traps
- SFR locks
- Shadow working registers
- cap-less on-chip LDO
- I/O Port read-back
- Class B Safety Library, IEC 60730
- AUTOSAR-Ready DSC supporting:
- AUTOSAR (4.3.x)
- ASIL B- and ASPICE-compliant MCAL drivers
- ISO 26262 Functional Safety and Automotive Security
