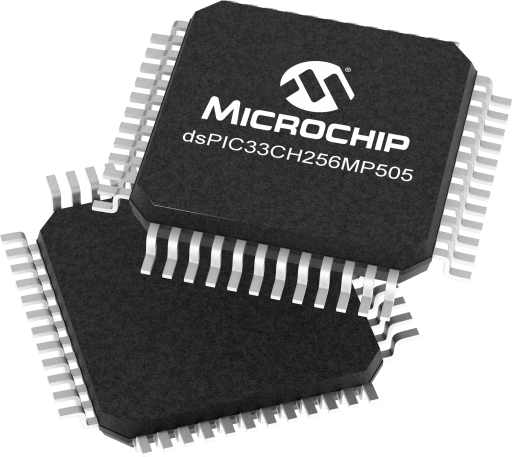

Microchip DSPIC33CH256MP505-E/PTVAO
Manufacturer No:
DSPIC33CH256MP505-E/PTVAO
Manufacturer:
Microchip
Package:
TQFP-48
Description:
100 MHz Dual-Core Digital Signal Controller (DSC) designed for motor control and digital power applications
Quantity:
In Stock :1953
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
DSPIC33CH256MP505-E/PTVAO Information
Microchip DSPIC33CH256MP505-E/PTVAO technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33CH256MP505-E/PTVAO.
- Type
- Parameter
- CPU Type
- dsPIC® DSC
- CPU Speed Max MHz (megahertz)
- 100
- Program Memory Size (KB)
- 256
- Multiple Flash Panels
- True
- Direct Memory Access (DMA) Channels
- 6
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 150
- Operation Voltage Min.(V)
- 3
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 48
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 4
- ADC Modules
- 4
- ADC Channels
- 34
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 3500
- Number of DACs
- 4
- DAC outputs
- 1
- Max DAC Resolution (bits)
- 12
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip DSPIC33CH256MP505-E/PTVAO.
Reference Manual:
Application Notes:
Supporting Collateral:
Data Sheets:
Microchip’s dsPIC33CH family of digital signal controllers (DSCs) feature dual 90 & 100 MIPS 16-bit dsPIC® DSC cores with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation and provide extended motor life. They can be used to control BLDC, PMSM, ACIM, SR and stepper motors. These DSCs enable the design of switched mode power supplies such as AC/DC, DC/DC, UPS and PFC, providing high-precision digital control of Buck, Boost, Fly-Back, Half-Bridge, Full-Bridge, LLC and other power circuits to reach the highest possible energy efficiency. These devices are also ideal for many advanced sensing and control, touch, high-performance general-purpose and robust applications.
These dual-core DSCs are a good fit for complex yet cost-effective advanced sensing, core-independent touch, motor, and digital power applications.
The dsPIC33CH product family has many hardware features that help simplify functional safety certifications for ASIL-B/-C and SIL-2/-3 focused automotive and industrial safety-critical applications. The family offers ISO 26262 and IEC 61508 Functional Safety packages containing FMEDA report, safety manual, diagnostic libraries and more.
• Learn more about Functional Safety capabilities including hardware, software, and supporting collateral
- Operating Conditions
- 3V to 3.6V, -40°C to +150°C
- Core: Dual Core dsPIC33CH DSCs
- Main Core 90 MHz and Secondary Core 100 MHz Operation
- Independent Peripherals for Main Core and Secondary Core
- Configurable Shared Resources for Main Core and Secondary Core
- Fast 6-Cycle Divide
- Message Boxes and FIFO to Communicate Between Main and Secondary (MSI)
- Code Efficient (C and Assembly) Architecture
- 40-Bit Wide Accumulators
- Single-Cycle (MAC/MPY) with Dual Data Fetch
- Single-Cycle, Mixed-Sign MUL Plus 6-Cycle Hardware Divide
- 32-Bit Multiply Support
- Five Sets of Interrupt Context Selected Registers and Accumulators per Core for Fast Interrupt Response
- Zero Overhead Looping
- High Performance Peripherals for Real Time Control
- 4 x 12-bit 3.5 MSPS ADCs: 34 Channels
- High Speed PWMs with 250ps resolution, 12x2 Channels
- Optimized for high-performance digital power, motor control and applications requiring sophisticated algorithms
- Main Core features
- Core Frequency: 90 MHz
- Program Flash: 512/256 Kbytes Dual Partition with LiveUpdate
- Data RAM: 48/32 Kbytes
- 16-Bit Timer: 1
- DMA: 6
- SCCP (Capture/Compare/Timer): 8
- UART: 2
- SPI/I2S: 2
- I2C: 2
- CAN Flexible Data-Rate (FD): 2 ('50x devices only)
- SENT: 2
- CRC: 1
- QEI: 1
- PTG:1
- CLC: 4
- 16-Bit High-Speed (250ps) PWM: 4x2
- 12-bit, 3.5 Msps ADC: 1, 16 Channels
- Digital Comparator: 4
- 12-Bit DAC/Analog CMP Module: 1
- Watchdog Timer: 1
- Deadman Timer: 1
- Breakpoints: 3 complex, 5 simple
- Oscillator: 1
- Secondary Core features
- Core Frequency: 100 MHz
- Program Memory: 72 Kbytes (PRAM) Dual Partition with LiveUpdate
- Data RAM: 16 Kbytes
- 16-Bit Timer: 1
- DMA: 2
- SCCP (Capture/Compare/Timer): 4
- UART: 1
- SPI/I2S: 1
- I2C: 1
- QEI: 1
- CLC: 4
- 16-Bit High-Speed (250ps) PWM: 8x2 Channels
- 12-bit, 3.5 Msps ADC: 3, 18 Channels
- Digital Comparator: 4
- 12-Bit DAC/Analog CMP Module: 3
- Watchdog Timer: 1
- Deadman Timer: 1
- Breakpoints: 1 complex, 2 simple
- Oscillator: 1
- Clock Management
- Internal Oscillator
- Programmable PLLs and Oscillator Clock Sources
- Main Reference Clock Output
- Secondary Reference Clock Output
- Fail-Safe Clock Monitor (FSCM)
- Fast Wake-up and Start-up
- Backup Internal Oscillator
- LPRC Oscillator
- Power Management
- Low-Power Management Modes (Sleep, Idle, Doze)
- Integrated Power-on Reset and Brown-out Reset
- Debugger Development Support
- In-Circuit and In-Application Programming
- Simultaneous Debugging Support for Main and Secondary Cores
- Main Only Debug and Secondary Only Debug Support
- IEEE 1149.2 Compatible (JTAG) Boundary Scan
- Trace Buffer and Run-Time Watch
- Core Independent Touch
- Uses Peripheral Trigger Generator (PTG) and High-speed ADCs
- Ready-to-use touch library support in MPLAB Code Configurator (MCC)
- Functional Safety Support (ISO 26262 and IEC 61508)
- ISO 26262 and IEC 61508 Functional Safety Ready
- ASIL B automotive safety applications – ISO 26262
- SIL 2 industrial safety applications – IEC 61508
- ISO 26262 and IEC 61508 Functional Safety Packages
- Embedded Security
- CodeGuard security together with Flash OTP by ICSP Write Inhibit enables implementing Immutable Secure Boot
- Flash OTP by ICSP Write Inhibit to configure entire Flash as OTP
- Option to disable entry to the debug mode
- User OTP
- Enables implementing robust security use cases together with CryptoAuthentication and CryptoAutomotive devices such as:
- Secure Boot
- Secure Firmware Upgrade
- Secure Communication
- Node Authentication and more
- Functional Safety hardware features
- Dead-Man Timer (DMT) safety feature clocked by instruction fetches
- Watch Dog Timer (WDT)
- CodeGuard™ security for program FLASH
- Programmable Cyclic Redundancy Check (CRC)
- FLASH ECC Fault Injection testing feature
- Flash OTP by ICSP™ write inhibit
- Class B Safety Library, IEC 60730
- RAM Memory Built-In Self Test (MBIST)
- Two-Speed Start-up
- Fail-Safe Clock Monitoring (FSCM)
- Backup FRC (BFRC)
- Capless Internal Voltage Regulator
- Virtual Pins for Redundancy and Monitoring
- Multiple redundant clock sources
- I/O Port read-back
- Analog peripherals redundancies
- Hardware traps
- SFR locks
- Write protection
- Shadow working registers
- AUTOSAR-Ready DSC supporting
- AUTOSAR (4.3.x)
- ASIL B- and ASPICE-compliant MCAL drivers
- ISO 26262 Functional Safety and Automotive Security
