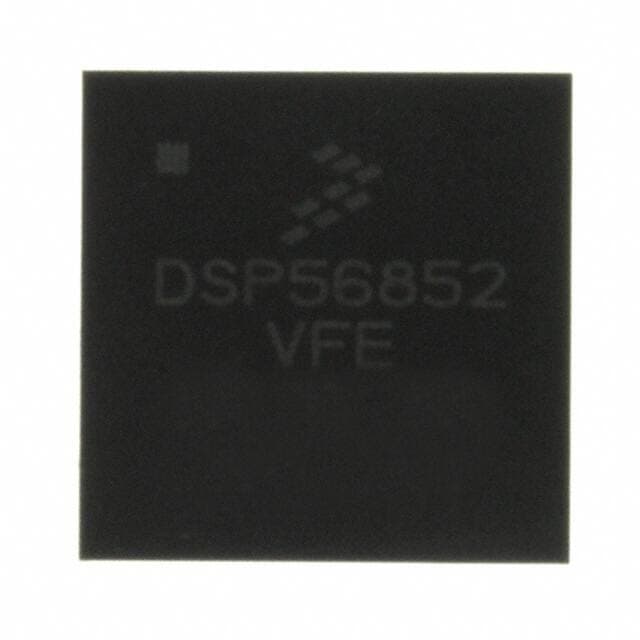

NXP DSP56852VFE

Manufacturer No:

DSP56852VFE

Manufacturer:

NXP

Package:

81-LFBGA

Description:

12KB 6K x 16 SRAM 56800E 16-Bit Microcontroller 568xx Series DSP56852 1.8V 81-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSP56852VFE information

NXP DSP56852VFE technical specifications, attributes, parameters and parts with similar specifications to NXP DSP56852VFE.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
81-LFBGA

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
568xx

Published
1999

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
81

HTS Code
8542.31.00.01

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Base Part Number
DSP56852

JESD-30 Code
S-PBGA-B81

Supply Voltage-Max (Vsup)
1.98V

Supply Voltage-Min (Vsup)
1.62V

Oscillator Type
Internal

Number of I/O
11

Speed
120MHz

RAM Size
4K x 16

uPs/uCs/Peripheral ICs Type
DIGITAL SIGNAL PROCESSOR, OTHER

Core Processor
56800E

Peripherals
POR, WDT

Clock Frequency
240MHz

Program Memory Type
SRAM

Core Size
16-Bit

Program Memory Size
12KB 6K x 16

Connectivity
EBI/EMI, SCI, SPI, SSI

Address Bus Width
20

Boundary Scan
YES

Low Power Mode
YES

External Data Bus Width
16

Format
FIXED POINT

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

Length
8mm

Height Seated (Max)
1.3mm

Width
8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP DSP56852VFE.

Datasheets:

nxpusainc-dsp56852vfe-datasheets-4968.pdf

DSP56852VFE Overview

Packaged in a 81-LFBGA format. A total of 11 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 16-Bit. The type of its program memory is SRAM. In this Microcontroller, temperature is controlled within the range -40°C~85°C TA. A 568xx series electrical component is used in this application. This program has a program memory of 12KB 6K x 16 bytes, which is the size of the program. With a 56800E Core Processor, Microcontroller is fast and efficient. ICs for DIGITAL SIGNAL PROCESSOR, OTHER uPs/uCs/peripheral parts. There are 81 terminations on the IC chip, which means there are 81 terminations on the integrated circuit chip. Microcontroller chip has outputs of 1.8V volts. Alternatives can be found by searching through the base part number DSP56852 to find them. It runs on a 240MHz clock.

DSP56852VFE Features

81-LFBGA package
Mounting type of Surface Mount

DSP56852VFE Applications

There are a lot of NXP USA Inc.
DSP56852VFE Microcontroller applications.

Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
