Skyworks DSM8100-000

Manufacturer No:

DSM8100-000

Manufacturer:

Skyworks

Package:

Description:

PIN - Single 0.025pF @ 10V 1MHz -65°C~150°C TA 2 Terminations SILICON DUAL Tray

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSM8100-000 information

Skyworks DSM8100-000 technical specifications, attributes, parameters and parts with similar specifications to Skyworks DSM8100-000.

Type
Parameter

Factory Lead Time
21 Weeks

Surface Mount
YES

Diode Element Material
SILICON

Operating Temperature
-65°C~150°C TA

Packaging
Tray

Published
2007

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Type
Switch

Additional Feature
HIGH VOLTAGE

HTS Code
8541.10.00.80

Technology
POSITIVE-INTRINSIC-NEGATIVE

Terminal Position
DUAL

Terminal Form
FLAT

Pin Count
2

JESD-30 Code
S-CDMW-F2

Number of Elements
1

Power Dissipation-Max
250mW

Element Configuration
Single

Diode Type
PIN - Single

Capacitance @ Vr, F
0.025pF @ 10V 1MHz

Breakdown Voltage-Min
60V

Resistance @ If, F
3.5Ohm @ 10mA 100MHz

Diode Capacitance-Max
0.025pF

Minority Carrier Lifetime-Nom
0.025 ?s

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Skyworks DSM8100-000.

DSM8100-000 Description

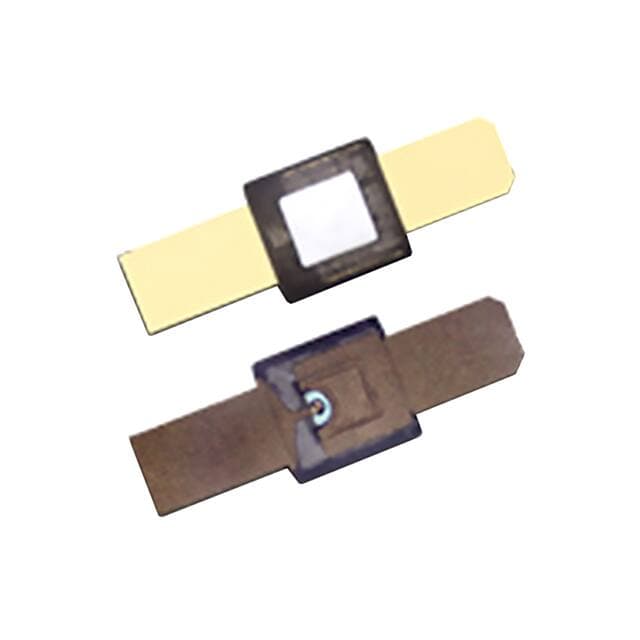

The DSM8100-000 is a Mesa Beam-Lead PIN Diode surrounded by a glass frame for superior strength and electrical performance that surpasses the standard beam-lead PINs.

DSM8100-000 Features

Low capacitance
Low resistance
Fast switching
Oxide-nitride passivated
Durable construction
Lead (Pb)-free, RoHS-compliant, and Green?

DSM8100-000 Applications

Designed for switching applications
