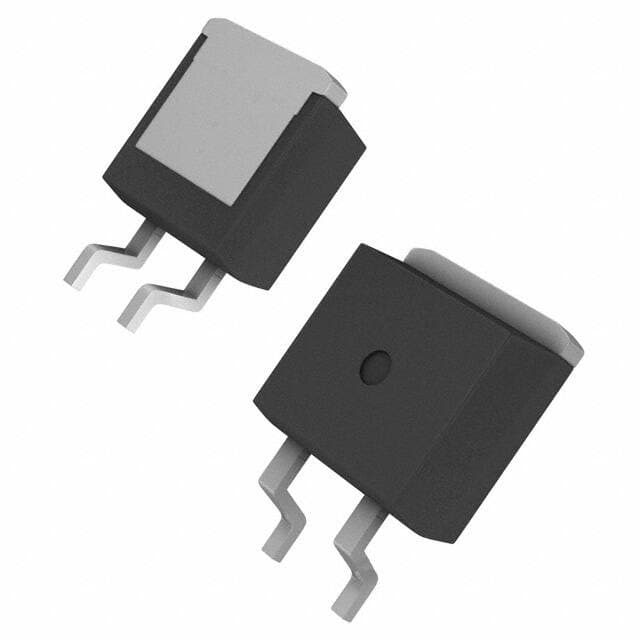

LITTELFUSE DSEP29-06AS-TUB
LITTELFUSE DSEP29-06AS-TUB

LITTELFUSE DSEP29-06AS-TUB

Manufacturer No:

DSEP29-06AS-TUB

Manufacturer:

LITTELFUSE

Package:

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.94V @ 30A -55°C~175°C 250μA @ 600V 2-Termination TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSEP29-06AS-TUB information

LITTELFUSE DSEP29-06AS-TUB technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DSEP29-06AS-TUB.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
  • Surface Mount
  • YES
  • Diode Element Material
  • SILICON
  • Number of Elements
  • 1
  • Operating Temperature (Max.)
  • 150°C
  • Power Dissipation (Max)
  • 165W
  • Series
  • HiPerFRED²™
  • Part Status
  • Active
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Applications
  • FAST SOFT RECOVERY
  • Additional Feature
  • FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE, PD-CASE
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Reference Standard
  • IEC-60747
  • JESD-30 Code
  • R-PSSO-G2
  • Configuration
  • SINGLE
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 250μA @ 600V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.94V @ 30A
  • Operating Temperature - Junction
  • -55°C~175°C
  • Voltage - DC Reverse (Vr) (Max)
  • 600V
  • Current - Average Rectified (Io)
  • 30A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 35ns
  • Rep Pk Reverse Voltage-Max
  • 600V
  • Capacitance @ Vr, F
  • 26pF @ 400V 1MHz
  • Non-rep Pk Forward Current-Max
  • 250A
  • Reverse Current-Max
  • 250μA

Download datasheets and manufacturer documentation for LITTELFUSE DSEP29-06AS-TUB.

Datasheets:

DSEP29-06AS-TUB Overview


At maximum reverse current, 250μA is reached.

DSEP29-06AS-TUB Features


A maximum reverse current of 250μA


DSEP29-06AS-TUB Applications


There are a lot of IXYS
DSEP29-06AS-TUB applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
