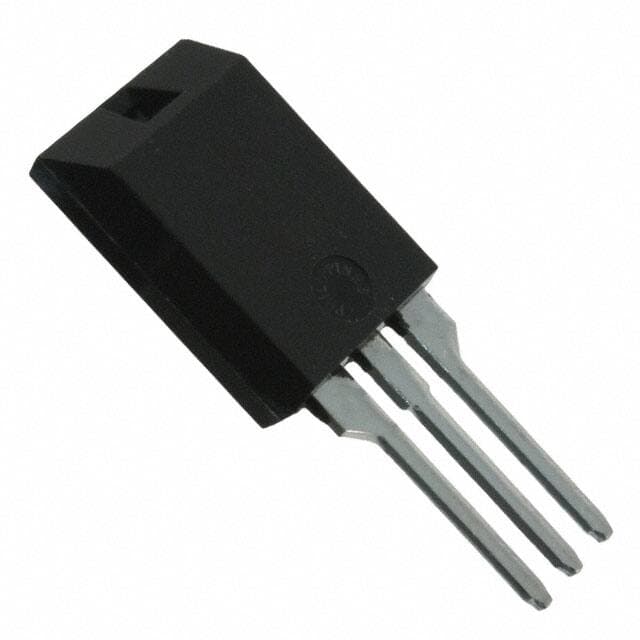

LITTELFUSE DSEC16-06AC

Manufacturer No:

DSEC16-06AC

Manufacturer:

LITTELFUSE

Package:

ISOPLUS220?

Description:

Standard Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~175°C 10A 600V-DC 2-Element ISOPLUS220? Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSEC16-06AC information

LITTELFUSE DSEC16-06AC technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DSEC16-06AC.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Radial, Through Hole

Mounting Type
Through Hole

Package / Case
ISOPLUS220?

Number of Pins
220

Diode Element Material
SILICON

Packaging
Tube

Series
HiPerFRED?

Published
2000

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature
175°C

Min Operating Temperature
-55°C

Additional Feature
SNUBBER DIODE, FREEWHEELING DIODE

HTS Code
8541.10.00.80

Subcategory
Rectifier Diodes

Technology
AVALANCHE

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Pin Count
3

JESD-30 Code
R-PSIP-T3

Qualification Status
Not Qualified

Number of Elements
2

Element Configuration
Common Cathode

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Standard

Current - Reverse Leakage @ Vr
60?A @ 60V

Voltage - Forward (Vf) (Max) @ If
2.1V @ 10A

Case Connection
ISOLATED

Operating Temperature - Junction
-55°C~175°C

Max Surge Current
50A

Output Current-Max
8A

Application
SOFT RECOVERY

Forward Voltage
2.1V

Max Reverse Voltage (DC)
600V

Average Rectified Current
10A

Number of Phases
1

Reverse Recovery Time
35 ns

Peak Reverse Current
60?A

Peak Non-Repetitive Surge Current
50A

Reverse Voltage
600V

Diode Configuration
1 Pair Common Cathode

Download datasheets and manufacturer documentation for LITTELFUSE DSEC16-06AC.

Datasheets:

ixys-dsec1606ac-datasheets-0703.pdf

DSEC16-06AC Overview

There will be no operation of this device when the forward voltage is set to 2.1V.8A is its maximum output voltage.In order to prevent the surge current from exceeding 50A, it should be monitored.In devices such as this one, reverse voltage peak is set at 60?A.

DSEC16-06AC Features

2.1V forward voltage
a maximum output voltage of 8A
a peak voltage of 60?A
a reverse voltage peak of 60?A

DSEC16-06AC Applications

There are a lot of IXYS
DSEC16-06AC applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
