DSA2311KA1-R0024TVAO Information

Microchip DSA2311KA1-R0024TVAO technical specifications, attributes, parameters and parts with similar specifications to Microchip DSA2311KA1-R0024TVAO.

Type
Parameter

Dimensions
2520 6-pin

Supply Voltage
2.5, 3.3

TempRange Max °C (degrees Celsius)
125

TempRange Min °C (degrees Celsius)
-40

Type
Parameter

Download datasheets and manufacturer documentation for Microchip DSA2311KA1-R0024TVAO.

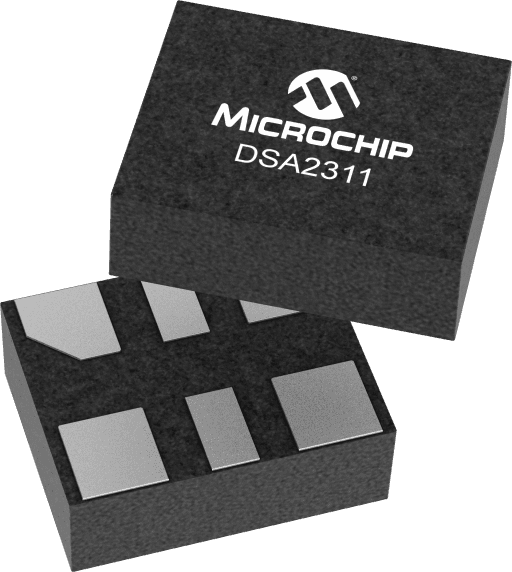

The DSA2311 is a crystal-less clock generator that is factory configurable to simultaneously output two separate frequencies from 2.3 to 170 MHz. The clock generator uses proven silicon MEMS technology to provide low jitter and high frequency stability across a wide range of supply voltages and temperatures. By eliminating the external quartz crystal, crystal-less clock generators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of consumer electronics, communications, and storage applications. DSA2311 has an Output Enable/Disable feature allowing it to disable the outputs when OE is low. The device is available in a space saving 6 pin 2.5mm x 2.0mm crystalless TDFN package that uses only a single external bypass capacitor.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

AEC-Q100 automotive qualified
Output 1 Range: 2.3 to 170MHz
Output 2 Range: 2.3 to 170MHz
Low RMS Phase Jitter: <1 ps (typ.)
High Stability: ±20 ppm ±25 ppm; ±50 ppm
Automotive Grade 1: -40°C to 125°C
Automotive Grade 2: -40°C to 105°C
Automotive Grade 3: -40°C to 85°C
High Supply Noise Rejection: -50dBc
Qualified to MIL-STD-883
20x better MTF than crystal-based clock generator designs
Lead Free and RoHS Compliant
Supply Range of 2.25V to 3.63V
Short Production Lead Times: 4-6 Weeks
