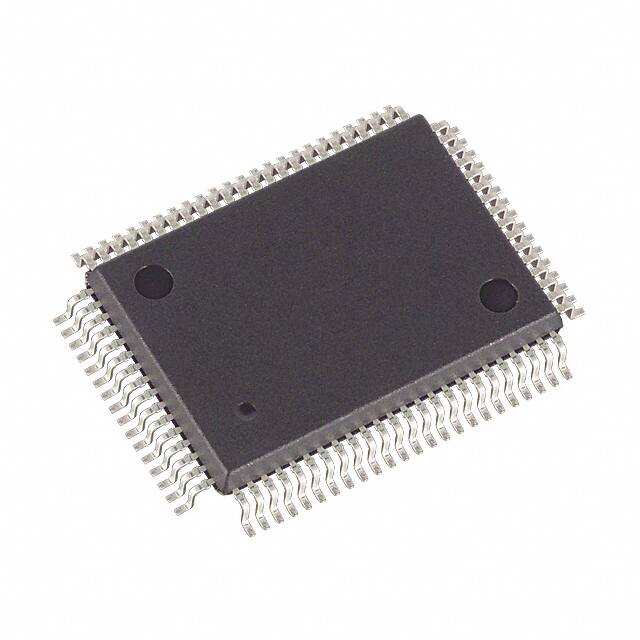

ADI DS5001FP-16N+

Manufacturer No:

DS5001FP-16N+

Manufacturer:

ADI

Package:

80-BQFP

Description:

External NVSRAM 8051 8-Bit Microcontroller DS500x Series DS5001 5V 80-BQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DS5001FP-16N+ information

ADI DS5001FP-16N+ technical specifications, attributes, parameters and parts with similar specifications to ADI DS5001FP-16N+.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
80-BQFP

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
DS500x

Published
1999

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
80

ECCN Code
EAR99

Terminal Finish
MATTE TIN

HTS Code
8542.31.00.01

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
DS5001

JESD-30 Code
R-PQFP-G80

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
4.5V

Number of I/O
32

Speed
16MHz

Voltage - Supply (Vcc/Vdd)
4.5V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
8051

Peripherals
Power-Fail Reset, WDT

Clock Frequency
16MHz

Program Memory Type
NVSRAM

Core Size
8-Bit

Program Memory Size
External

Connectivity
EBI/EMI, SIO, UART/USART

Bit Size
8

Has ADC
NO

DMA Channels
NO

PWM Channels
NO

DAC Channels
NO

Address Bus Width
16

External Data Bus Width
8

Length
20mm

Download datasheets and manufacturer documentation for ADI DS5001FP-16N+.

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

DS5001FP-16N+ Overview

The package is in 80-BQFP format. The MCU has 32 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 8-Bit core. There is a memory type of NVSRAM in its program memory. The temperature range that this Microcontroller operates at is -40°C~85°C TA. The electrical component that you are looking at belongs to the DS500x series of components. Microcontroller has abundant program memory size of External. The 8051 Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 80 of terminations. A 8-bit operation is performed by this part. There is an output of 5V volts from the Microcontroller chip. A total of NO DMA channels are available on MCU chip. DS5001 serves as a base part number to find alternatives. It is possible for the device to work with the motor using the PWM channel NO. It consists of 80 pins. In terms of frequency, it operates at a 16MHz clock rate.

DS5001FP-16N+ Features

80-BQFP package
Mounting type of Surface Mount

DS5001FP-16N+ Applications

There are a lot of Maxim Integrated
DS5001FP-16N+ Microcontroller applications.

Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
Digital cameras
DVD\DV\MP3 players
