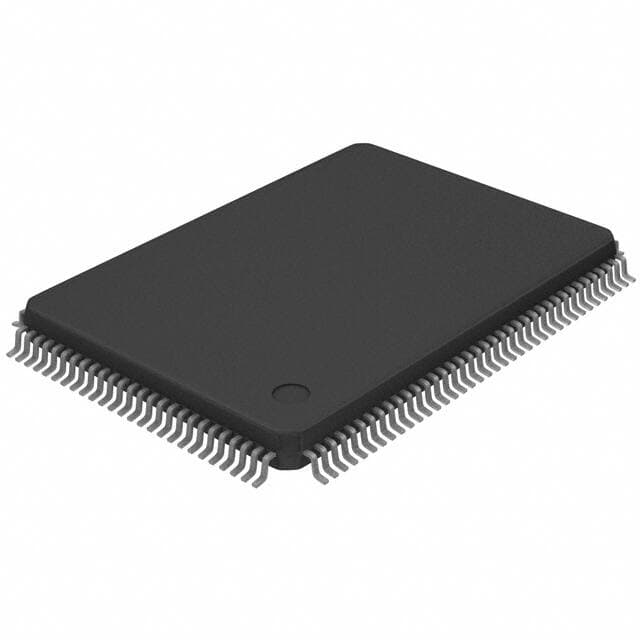

ADI DS21Q41BT

Manufacturer No:

DS21Q41BT

Manufacturer:

ADI

Package:

128-LQFP

Description:

128 Terminations 5V 128 Pin DS21Q41 Telecom device 4 Circuits 4 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DS21Q41BT information

ADI DS21Q41BT technical specifications, attributes, parameters and parts with similar specifications to ADI DS21Q41BT.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
128-LQFP

Number of Pins
128

Operating Temperature
0°C~70°C

Packaging
Tube

Published
1999

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Digital Transmission Controllers

Technology
CMOS

Voltage - Supply
4.5V~5.5V

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
128

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Parallel/Serial

Number of Circuits
4

Operating Supply Current
30mA

Max Supply Current
30mA

Data Rate
2.048 Mbps

Telecom IC Type
FRAMER

Length
20mm

Height Seated (Max)
1.6mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ADI DS21Q41BT.

Datasheets:

maximintegrated-ds21q41bt-datasheets-5783.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

DS21Q41BT Overview

A 128-LQFP package is used to reduce board space requirements.A Tube-packing method is used to pack telecommunications equipment.A Surface Mount-mount is used for mounting the telecom circuit.Telecom circuit is made up of 4 circuits.Providing 4.5V~5.5V wtelecom IC's efficiencyh the correct supply voltage will improve efficiency.A 0°C~70°C-temperature setting offers reliable performance.The mounting is in the way of Surface Mount.Configuration of this telecom circuit has 128 terminations.There is a voltage supply called 5V that it uses.The telecom interface has 128 pins.The DS21Q41 base part number can be used to find more related parts.The type of telecom IC it uses is FRAMER.With the voltage of 5V as its supply voltage, designers have a great deal of flexibility.In addition to providing many benefits for designers, it operates using 30mA as a supply current.The telecommunications device is part of the Digital Transmission Controllers subcategory.While designing, telecommunications device has 4 functions configured.Its pin configuration is determined by 128 telecom product pins.Normal operation requires a constant supply current of 30mA.

DS21Q41BT Features

Available in the 128-LQFP package
FRAMER as telecom IC type
Operating supply voltage of 5V
Operating supply current of 30mA

DS21Q41BT Applications

There are a lot of Maxim Integrated
DS21Q41BT Telecom applications.

Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Frame Relay Switches and Access Devices (FRADS)
ISDN Primary Rate Interfaces (PRA)
PBXs channel bank
PCM channel bank
T3 channelized access concentrators
M13 MUX
