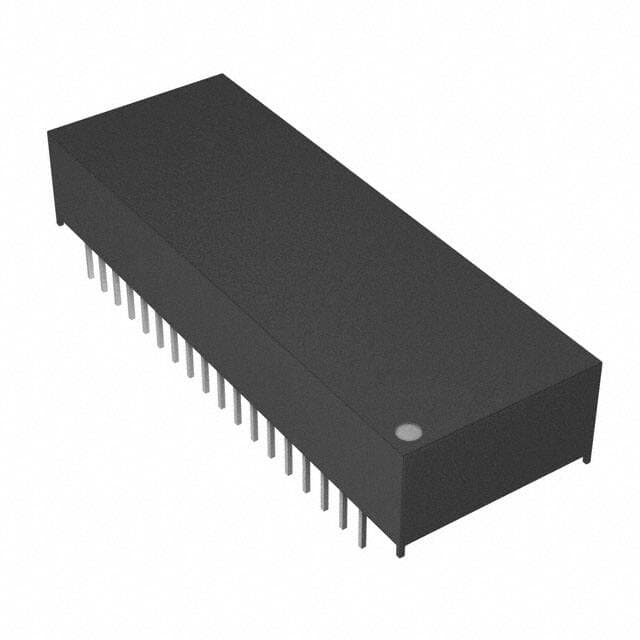

ADI DS1270Y-70#
ADI DS1270Y-70#

ADI DS1270Y-70#

Manufacturer No:

DS1270Y-70#

Manufacturer:

ADI

Package:

36-DIP Module (0.600, 15.24mm)

Description:

36 Pin Memory IC DS1270Y 53.213mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DS1270Y-70# information

ADI DS1270Y-70# technical specifications, attributes, parameters and parts with similar specifications to ADI DS1270Y-70#.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • 36-DIP Module (0.600, 15.24mm)
  • Surface Mount
  • NO
  • Operating Temperature
  • 0°C~70°C TA
  • Packaging
  • Tube
  • Published
  • 2004
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 36
  • ECCN Code
  • 3A991.B.2.A
  • Additional Feature
  • 5 YEAR DATA RETENTION
  • HTS Code
  • 8473.30.11.40
  • Technology
  • NVSRAM (Non-Volatile SRAM)
  • Voltage - Supply
  • 4.5V~5.5V
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 2.54mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • DS1270Y
  • JESD-30 Code
  • R-PDIP-P36
  • Qualification Status
  • Not Qualified
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Supply Voltage-Min (Vsup)
  • 4.5V
  • Memory Size
  • 16Mb 2M x 8
  • Memory Type
  • Non-Volatile
  • Operating Mode
  • ASYNCHRONOUS
  • Memory Format
  • NVSRAM
  • Memory Interface
  • Parallel
  • Organization
  • 2MX8
  • Memory Width
  • 8
  • Write Cycle Time - Word, Page
  • 70ns
  • Memory Density
  • 16777216 bit
  • Access Time (Max)
  • 70 ns
  • Length
  • 53.213mm
  • Height Seated (Max)
  • 10.922mm
  • Width
  • 15.24mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ADI DS1270Y-70#.

Datasheets:

Application Notes:

DS1270Y-70# Overview


In this case, the memory type of the device can be classified as Non-Volatile. Case Tube is available. An embedded 36-DIP Module (0.600, 15.24mm) case surrounds memory ics. It is estimated that the memory size on the chip is 16Mb 2M x 8. As with most mainstream devices, this one uses NVSRAM-format memory. Due to its wide temperature range of 0°C~70°C TA, this device is well suited to a wide range of applications that require high performance. With 4.5V~5.5V as the supply voltage, it is capable of handling memory ics. It is recommended to mount it in the Through Hole mounting type. It is planted on the chip with 36 terminations. It supports up to 1 functions for comprehensive operation. There is a requirement for 5V to be supplied to this ic memory chip in order to operate. A device's base part number, DS1270Y, is often used in order to identify similar components. The memory device has a total of 36 pins, thus indicating that it has a total of 36 memory locations. This chip is not only loaded with advantages, but it also comes with 5 YEAR DATA RETENTION, which boosts the performance of your system.

DS1270Y-70# Features


Package / Case: 36-DIP Module (0.600, 15.24mm)
Additional Feature:5 YEAR DATA RETENTION


DS1270Y-70# Applications


There are a lot of Maxim Integrated
DS1270Y-70# Memory applications.


  • networking
  • personal computers
  • servers
  • supercomputers
  • telecommunications
  • workstations,
  • DVD disk buffer
  • data buffer
  • nonvolatile BIOS memory
  • Camcorders
