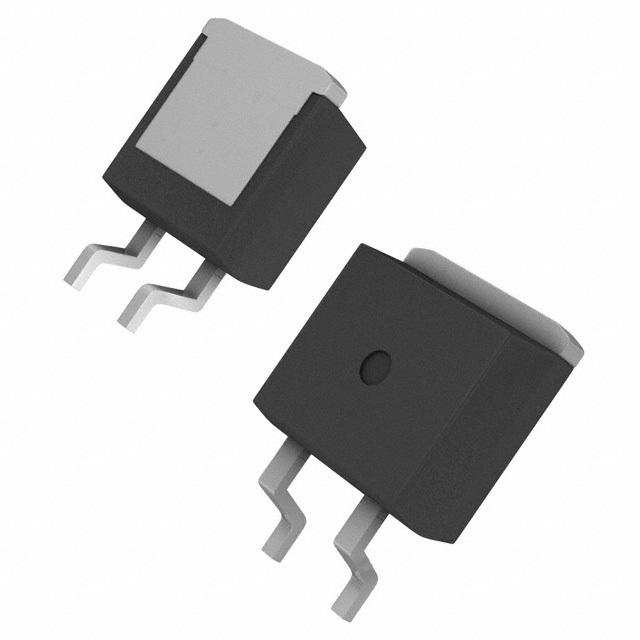

LITTELFUSE DPG60IM300PC
LITTELFUSE DPG60IM300PC

LITTELFUSE DPG60IM300PC

Manufacturer No:

DPG60IM300PC

Manufacturer:

LITTELFUSE

Package:

TO-263-3

Description:

RECTIFIER DIODE Diode Rectifier 2-Termination Cut Tape TO-263-3

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DPG60IM300PC information

LITTELFUSE DPG60IM300PC technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DPG60IM300PC.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • TO-263-3
  • Number of Pins
  • 3
  • Weight
  • 1.59999g
  • Diode Element Material
  • SILICON
  • Packaging
  • Cut Tape
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • PURE TIN
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • FREEWHEELING DIODE, SNUBBER DIODE, LOW LEAKAGE CURRENT
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Technology
  • AVALANCHE
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 4
  • JESD-30 Code
  • R-PSSO-G2
  • Number of Elements
  • 1
  • Power Dissipation-Max
  • 335W
  • Element Configuration
  • Common Anode
  • Diode Type
  • RECTIFIER DIODE
  • Case Connection
  • CATHODE
  • Forward Current
  • 60A
  • Max Reverse Leakage Current
  • 350?A
  • Max Surge Current
  • 550A
  • Application
  • FAST SOFT RECOVERY
  • Forward Voltage
  • 1.1V
  • Max Reverse Voltage (DC)
  • 300V
  • Average Rectified Current
  • 60A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 35 ns
  • Max Repetitive Reverse Voltage (Vrrm)
  • 300V
  • Max Forward Surge Current (Ifsm)
  • 550A
  • Recovery Time
  • 35 ns
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE DPG60IM300PC.

Datasheets:

DPG60IM300PC Overview


A reverse leakage current of 350?A volts can be generated by this device.A rectified current of 60A volts is averaged for this device.A value of 60A is the maximum forward current that can be allowed.550A is the maximum value of surge current.

DPG60IM300PC Features


a maximal reverse leakage current of 350?A volts
an average rectified current of 60A volts


DPG60IM300PC Applications


There are a lot of IXYS
DPG60IM300PC applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
