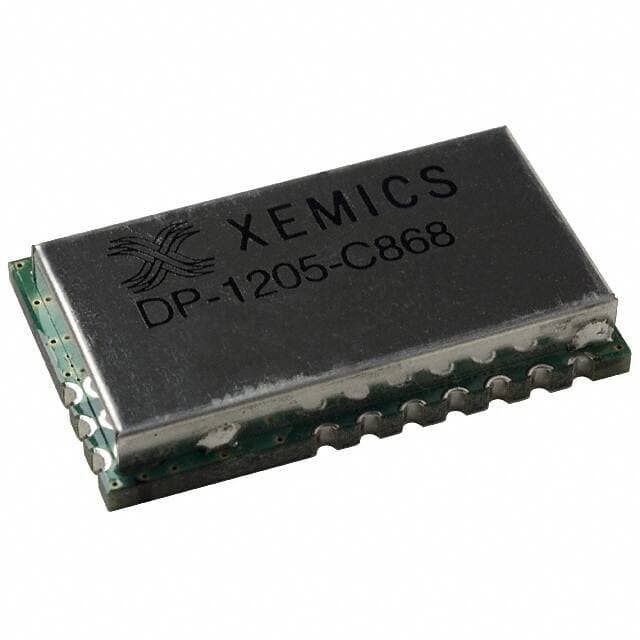

Semtech DP1205C868

Manufacturer No:

DP1205C868

Manufacturer:

Semtech

Package:

Module

Description:

868MHz General ISM < 1GHz -40°C~85°C 2.4V~3.6V SPI Bulk Antenna Not Included 152.3kbps 15dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DP1205C868 information

Semtech DP1205C868 technical specifications, attributes, parameters and parts with similar specifications to Semtech DP1205C868.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Module

Operating Temperature
-40°C~85°C

Packaging
Bulk

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
19

Terminal Finish
MATTE TIN

HTS Code
8542.39.00.01

Voltage - Supply
2.4V~3.6V

Terminal Position
UNSPECIFIED

Terminal Form
UNSPECIFIED

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Frequency
868MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
DP1205

Pin Count
19

JESD-30 Code
R-XXMA-X19

Qualification Status
Not Qualified

Utilized IC / Part
XE1205

Telecom IC Type
TELECOM CIRCUIT

Power - Output
15dBm

RF Family/Standard
General ISM < 1GHz

Antenna Type
Antenna Not Included

Serial Interfaces
SPI

Current - Receiving
14mA

Current - Transmitting
33mA~62mA

Sensitivity (dBm)
-118 dBm

Length
30.5mm

Width
18.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead
