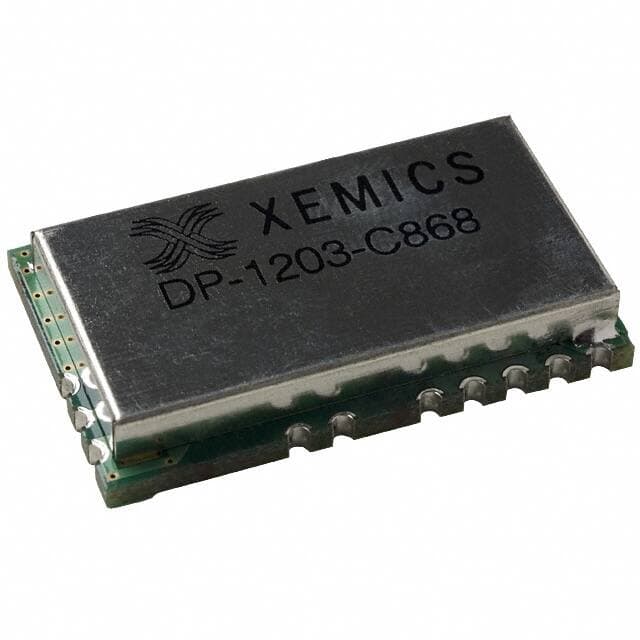

Manufacturer No:

DP1203C868

Manufacturer:

Semtech

Package:

Module

Description:

868MHz General ISM < 1GHz -40°C~85°C 2.4V~3.6V SPI Bulk Antenna Not Included 152.3kbps 11dBm Module

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DP1203C868 information

Semtech DP1203C868 technical specifications, attributes, parameters and parts with similar specifications to Semtech DP1203C868.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Module
  • Number of Pins
  • 21
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 21
  • Terminal Finish
  • TIN LEAD
  • HTS Code
  • 8542.39.00.01
  • Voltage - Supply
  • 2.4V~3.6V
  • Terminal Position
  • UNSPECIFIED
  • Terminal Form
  • UNSPECIFIED
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Reach Compliance Code
  • unknown
  • Frequency
  • 868MHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • DP1203
  • Pin Count
  • 21
  • Data Rate
  • 152.3kbps
  • Utilized IC / Part
  • XE1203
  • Telecom IC Type
  • TELECOM CIRCUIT
  • Power - Output
  • 11dBm
  • RF Family/Standard
  • General ISM < 1GHz
  • Antenna Type
  • Antenna Not Included
  • Serial Interfaces
  • SPI
  • Current - Receiving
  • 14mA
  • Current - Transmitting
  • 33mA~62mA
  • Sensitivity (dBm)
  • -111 dBm
  • Length
  • 30.5mm
  • Width
  • 18.5mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for Semtech DP1203C868.

Datasheets:

PCN Packaging:

DP1203C868 Overview


As far as RF Transceiver' mounting is concerned, Surface Mount is adopted.optimized performance is achieved by utilizing the Bulk package in this RF Transceiver module.Throughout this RF Transceiver module, there are 21 terminations.During Transceiver operation, the operating temperature should remain at -40°C~85°C.In the particular high power Transceivers, the DP1203 family is represented.There are 21 pins used for high power RF Transceiver operation.It is possible to supply 2.4V~3.6V volts to the RF Transceiver.RF Transceiver Modules operate with a frequency of 868MHz Hz.This Transceiver is widely used in many applications because of its Surface Mount mount.
