Manufacturer No:

DMV1500HFD5

Manufacturer:

ST

Package:

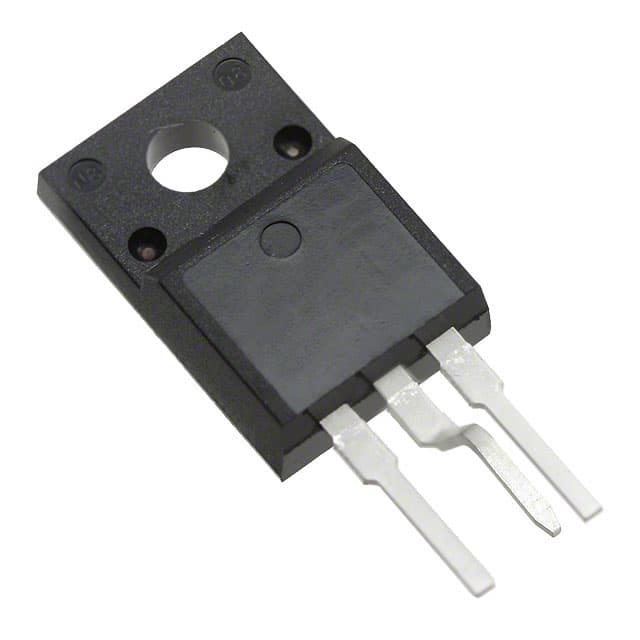

TO-220-3 Full Pack, Formed Leads

Description:

Standard - 1 Pair Series Connection 150°C TJ 3 Terminations SILICON NOT SPECIFIED SINGLE Tube TO-220-3 Full Pack, Formed Leads

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DMV1500HFD5 information

ST DMV1500HFD5 technical specifications, attributes, parameters and parts with similar specifications to ST DMV1500HFD5.

  • Type
  • Parameter
  • Surface Mount
  • NO
  • Package / Case
  • TO-220-3 Full Pack, Formed Leads
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Operating Temperature
  • 150°C TJ
  • JESD-609 Code
  • e3
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • HTS Code
  • 8541.10.00.80
  • Capacitance
  • 7pF
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 1.5kV
  • Terminal Position
  • SINGLE
  • Terminal Form
  • THROUGH-HOLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Reach Compliance Code
  • not_compliant
  • Current Rating
  • 6A
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • DMV1500
  • Pin Count
  • 3
  • JESD-30 Code
  • R-PSFM-T3
  • Number of Elements
  • 2
  • Configuration
  • SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
  • Max Current Rating
  • 6A
  • Diode Type
  • Standard - 1 Pair Series Connection
  • Case Connection
  • ISOLATED
  • Max Surge Current
  • 35A
  • Output Current-Max
  • 6A
  • Application
  • HIGH VOLTAGE VERY FAST RECOVERY
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 20?A
  • JEDEC-95 Code
  • TO-220AB
  • Non-rep Pk Forward Current-Max
  • 80A
  • Reverse Voltage
  • 600V
  • Forward Voltage-Max
  • 1.4V
  • Recovery Time
  • 350 ns
  • Voltage - Peak Reverse (Max)
  • 1500V
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST DMV1500HFD5.

Datasheets:

DMV1500HFD5 Overview


This device is rated for a maximum forward voltage of 1.4V.This device operates at a maximum peak reverse voltage of 1500V according to its specifications.We are referring to the capacitance 7pF in this case.This device can read a maximum output current voltage of 6A.This part currently has a rating of 6A.

DMV1500HFD5 Features


1.4V forward voltage
7pF capacitance
a maximum output current voltage of 6A


DMV1500HFD5 Applications


There are a lot of STMicroelectronics
DMV1500HFD5 applications of RF diodes.


  • Telematic systems
  • Compensators
  • Radar systems for industrial use
  • Ultra high-speed switching
  • Clamping circuits
  • Diode ring mixer
  • RF detector
  • RF voltage doubler
  • Wearables
  • Smart metering
