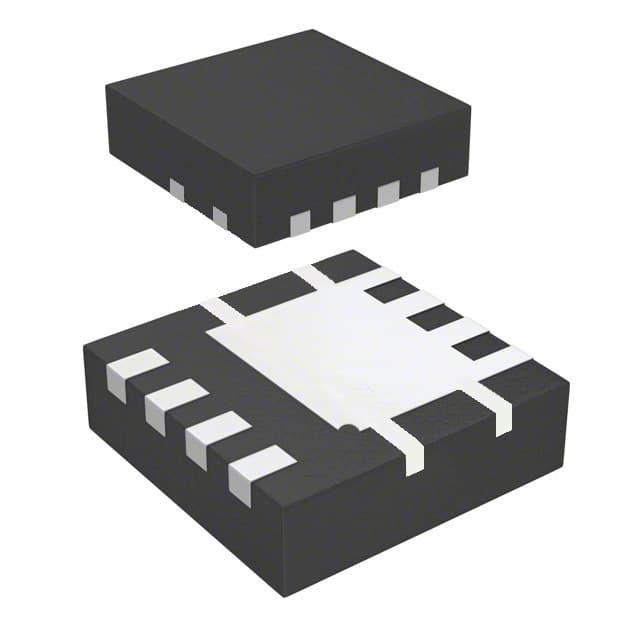

DIODES DMP6023LFG-13

Manufacturer No:

DMP6023LFG-13

Manufacturer:

DIODES

Package:

8-PowerVDFN

Description:

MOSFET (Metal Oxide) P-Channel Tape & Reel (TR) 25m ? @ 5A, 10V ±20V 2569pF @ 30V 53.1nC @ 10V 60V 8-PowerVDFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DMP6023LFG-13 information

DIODES DMP6023LFG-13 technical specifications, attributes, parameters and parts with similar specifications to DIODES DMP6023LFG-13.

Type
Parameter

Factory Lead Time
23 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-PowerVDFN

Number of Pins
8

Transistor Element Material
SILICON

Operating Temperature
-55°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
HIGH RELIABILITY

Technology
MOSFET (Metal Oxide)

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-PDSO-N5

Number of Elements
1

Configuration
SINGLE WITH BUILT-IN DIODE

Power Dissipation-Max
1W Ta

Operating Mode
ENHANCEMENT MODE

Case Connection
DRAIN

Turn On Delay Time
6 ns

FET Type
P-Channel

Transistor Application
SWITCHING

Rds On (Max) @ Id, Vgs
25m ? @ 5A, 10V

Vgs(th) (Max) @ Id
3V @ 250?A

Input Capacitance (Ciss) (Max) @ Vds
2569pF @ 30V

Current - Continuous Drain (Id) @ 25°C
7.7A Ta

Gate Charge (Qg) (Max) @ Vgs
53.1nC @ 10V

Rise Time
7.1ns

Drain to Source Voltage (Vdss)
60V

Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V

Vgs (Max)
±20V

Fall Time (Typ)
62 ns

Turn-Off Delay Time
110 ns

Continuous Drain Current (ID)
7.7A

Gate to Source Voltage (Vgs)
20V

Drain-source On Resistance-Max
0.025Ohm

Drain to Source Breakdown Voltage
-60V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DIODES DMP6023LFG-13.

Datasheets:

diodesincorporated-dmp6023lfg7-datasheets-0734.pdf

Environmental Information:

diodesincorporated-desd5v0s1ba7-environmentalinformation-9032.pdf

DMP6023LFG-13 Overview

With either input grounded, the input capacitance parameter, CI, represents the capacitance between the input terminals of the op amp. This device has a maximum input capacitance of 2569pF @ 30V.A device's drain current is its maximum continuous current, and this device has a continuous drain current (ID) of 7.7A.With a drain-source breakdown voltage of -60V and a drain-source current flow rate of 1, this device has a drain-source breakdown voltage of -60V.The turn-off delay time is the amount of time it takes to charge the input capacitance of the device before drain current conduction can begin, and it is 110 ns.Input capacitance charging takes time before drain current conduction begins, so the turn-on delay time is 6 ns.Single MOSFETs transistor is the voltage that falls across the gate-source terminal of a FET transistor that is called the gate-source voltage, VGS.Single MOSFETs transistor is necessary to have a drain to source voltage (Vdss) of 60V.Using drive voltage (4.5V 10V) reduces this device's overall power consumption.

DMP6023LFG-13 Features

a continuous drain current (ID) of 7.7A
a drain-to-source breakdown voltage of -60V voltage
the turn-off delay time is 110 ns
a 60V drain to source voltage (Vdss)

DMP6023LFG-13 Applications

There are a lot of Diodes Incorporated
DMP6023LFG-13 applications of single MOSFETs transistors.

Lighting
Uninterruptible Power Supply
AC-DC Power Supply
Synchronous Rectification for ATX 1 Server I Telecom PSU
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
