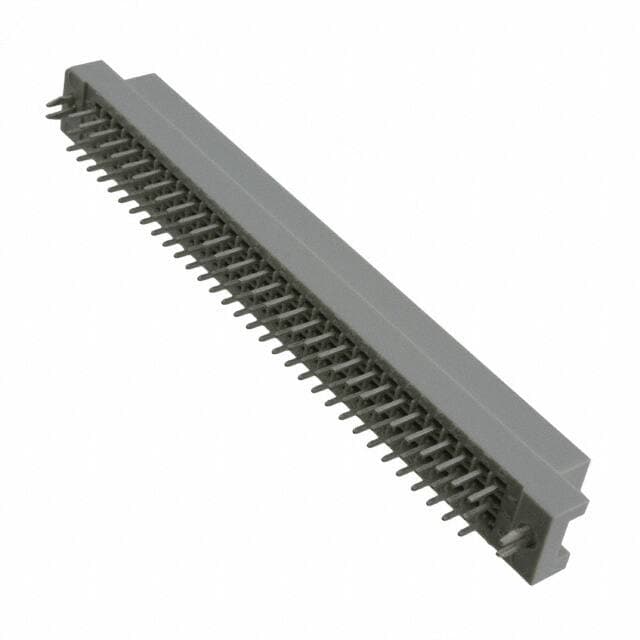

3M DIN-096CSC-R1L-HM
3M DIN-096CSC-R1L-HM

3M DIN-096CSC-R1L-HM

Manufacturer No:

DIN-096CSC-R1L-HM

Manufacturer:

3M

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DIN-096CSC-R1L-HM information

3M DIN-096CSC-R1L-HM technical specifications, attributes, parameters and parts with similar specifications to 3M DIN-096CSC-R1L-HM.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Housing Material
  • Polyester
  • Material - Insulation
  • Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Bulk
  • Series
  • DIN 41612
  • Published
  • 2010
  • Feature
  • Board Lock
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 96
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Number of Rows
  • 3
  • Gender
  • Female
  • Voltage - Rated
  • 100V
  • Current Rating (Amps)
  • 3A
  • Pitch
  • 0.100 2.54mm
  • Style
  • C
  • Current Rating
  • 3A
  • Contact Finish
  • Gold
  • Contact Gender
  • Female
  • Insulation Resistance
  • 1GOhm
  • Contact Finish Thickness
  • 3.00?in 0.076?m
  • Length - Tail
  • 3.75mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for 3M DIN-096CSC-R1L-HM.

Datasheets:

ConflictMineralStatement:

Description:

The 3M Backplane Connectors DIN 41612 DIN-096CSC-R1L-HM are a series of 96-position vertical DIN sockets designed for use in backplane applications. These connectors feature a gold-plated contact system and a robust housing for reliable performance in harsh environments. The connectors are designed to meet the requirements of the DIN 41612 standard and are UL recognized.

Features:

? 96-position vertical DIN sockets
? Gold-plated contact system
? Robust housing
? Meets DIN 41612 standard
? UL recognized

Applications:

The 3M Backplane Connectors DIN 41612 DIN-096CSC-R1L-HM are designed for use in backplane applications such as industrial automation, telecommunications, and medical equipment. They are suitable for use in harsh environments and can be used in a variety of applications where reliable performance is required.
