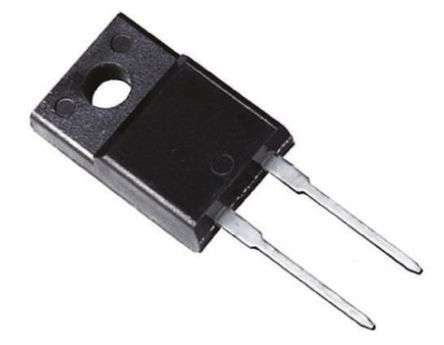

LITTELFUSE DHG10I600PM

Manufacturer No:

DHG10I600PM

Manufacturer:

LITTELFUSE

Package:

TO-220-3 Full Pack

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 2.35V @ 10A -55°C~150°C 15?A @ 600V 2-Termination Tube TO-220-3 Full Pack Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DHG10I600PM information

LITTELFUSE DHG10I600PM technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DHG10I600PM.

Type
Parameter

Factory Lead Time
28 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-3 Full Pack

Number of Pins
3

Weight
2.299997g

Diode Element Material
SILICON

Packaging
Tube

Published
2006

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Max Operating Temperature
150°C

Min Operating Temperature
-55°C

Additional Feature
FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE

HTS Code
8541.10.00.80

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
3

JESD-30 Code
R-PSFM-T2

Qualification Status
Not Qualified

Number of Elements
1

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Standard

Current - Reverse Leakage @ Vr
15?A @ 600V

Voltage - Forward (Vf) (Max) @ If
2.35V @ 10A

Case Connection
ISOLATED

Forward Current
10A

Max Reverse Leakage Current
15?A

Operating Temperature - Junction
-55°C~150°C

Max Surge Current
100A

Application
FAST SOFT RECOVERY

Max Reverse Voltage (DC)
600V

Average Rectified Current
10A

Number of Phases
1

Reverse Recovery Time
35 ns

Peak Reverse Current
15?A

Max Repetitive Reverse Voltage (Vrrm)
600V

JEDEC-95 Code
TO-220AC

Max Forward Surge Current (Ifsm)
100A

Recovery Time
35 ns

Height
20.3mm

Length
15.8mm

Width
4.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LITTELFUSE DHG10I600PM.

Datasheets:

ixys-dhg10i600pm-datasheets-5007.pdf

DHG10I600PM Overview

Reverse leakage current from this device is 15?A volts at its maximum.For this device, the average rectified current is 10A volts.In this case, forward current can reach 10A.Phase diode rectifier is possible to use a surge current of maximum value 100A.Based on the data chart, the peak reverse is 15?A.

DHG10I600PM Features

a maximal reverse leakage current of 15?A volts
an average rectified current of 10A volts
the peak reverse is 15?A

DHG10I600PM Applications

There are a lot of IXYS
DHG10I600PM applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
