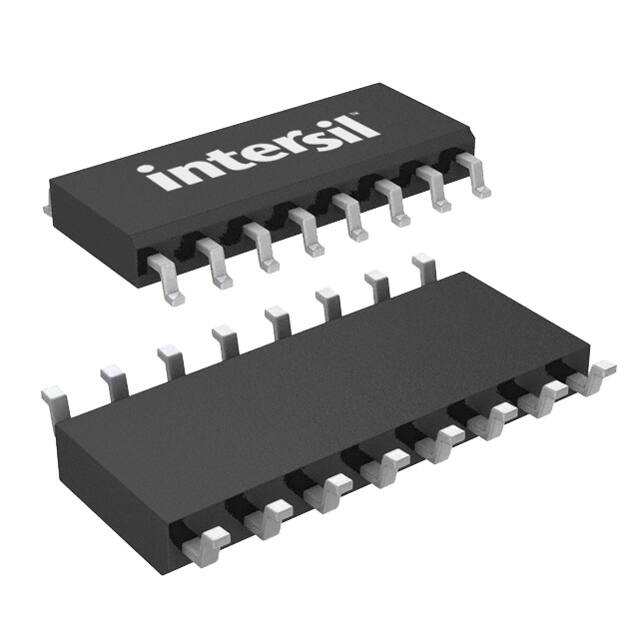

Renesas DG445DYZ-T
Renesas DG445DYZ-T

Renesas DG445DYZ-T

Manufacturer No:

DG445DYZ-T

Manufacturer:

Renesas

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

250ns, 210ns SPST - NO 85Ohm DUAL Analog Switches DG445 16 Pins 500pA 15V 16-SOIC (0.154, 3.90mm Width)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DG445DYZ-T information

Renesas DG445DYZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas DG445DYZ-T.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 16-SOIC (0.154, 3.90mm Width)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 16
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Additional Feature
  • IT CAN ALSO OPERATE WITH 12V SINGLE SUPPLY
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 4
  • Supply Voltage
  • 15V
  • Terminal Pitch
  • 1.27mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • DG445
  • Pin Count
  • 16
  • JESD-30 Code
  • R-PDSO-G16
  • Number of Circuits
  • 4
  • Voltage - Supply, Single/Dual (±)
  • 5V~34V ±5V~22V
  • Neg Supply Voltage-Nom (Vsup)
  • -15V
  • On-State Resistance (Max)
  • 85Ohm
  • Multiplexer/Demultiplexer Circuit
  • 1:1
  • Current - Leakage (IS(off)) (Max)
  • 500pA
  • Channel Capacitance (CS(off), CD(off))
  • 4pF 4pF
  • Switch Circuit
  • SPST - NO
  • Switch Time (Ton, Toff) (Max)
  • 250ns, 210ns
  • Charge Injection
  • -1pC
  • Crosstalk
  • -100dB @ 1MHz
  • Switch-on Time-Max
  • 250ns
  • Switch-off Time-Max
  • 210ns
  • Length
  • 9.9mm
  • Height Seated (Max)
  • 1.75mm
  • Width
  • 3.9mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas DG445DYZ-T.

Datasheets:

DG445DYZ-T Overview


Packed in 16-SOIC (0.154, 3.90mm Width), the electronic component is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. This analog switch is mounted in Surface Mount. The ratio between the number of multiplexer and demultiplexer circuits is 1:1. Extended operating temperature around -40°C~85°C TA. There are 16 terminations totally. By its 1 channels, the electronic component provides high-quality output. With a 15V voltage supply, the electrical component should be turned on and run. 16 pins are injected to the electronic part body. These analog multiplexers are built based on SPST - NO switching circuits. This multiplexer is composed of 4 circuits. If you are looking for variants of the digital switch, trying search with DG445. Don?t miss additional features of the electronic component such as: IT CAN ALSO OPERATE WITH 12V SINGLE SUPPLY.

DG445DYZ-T Features


1 Channels
Switch Circuit: SPST - NO
Additional Features: IT CAN ALSO OPERATE WITH 12V SINGLE SUPPLY


DG445DYZ-T Applications


There are a lot of Renesas Electronics America Inc.
DG445DYZ-T Analog Switches & Multiplexers ICs applications.


  • High-Voltage
  • Transmit
  • Low-Voltage
  • Isolation
  • Medical
  • Imaging
  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
