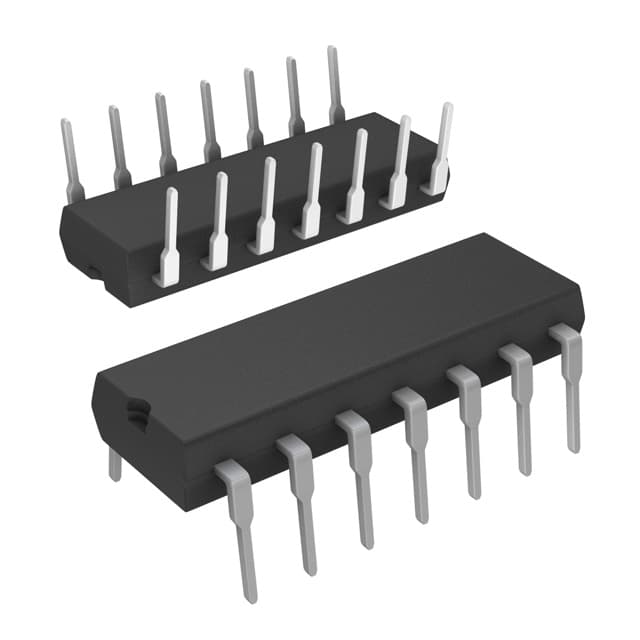

VISHAY DG307AAK
Manufacturer No:
DG307AAK
Manufacturer:
Package:
14-CDIP (0.300, 7.62mm)
Description:
250ns, 150ns SPDT 50Ohm Analog Switches BREAK-BEFORE-MAKE 14 Pins 15V 14-CDIP (0.300, 7.62mm)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
DG307AAK information
VISHAY DG307AAK technical specifications, attributes, parameters and parts with similar specifications to VISHAY DG307AAK.
- Type
- Parameter
- Factory Lead Time
- 14 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 14-CDIP (0.300, 7.62mm)
- Number of Pins
- 14
- Operating Temperature
- -55°C~125°C TA
- Packaging
- Tube
- Published
- 2005
- JESD-609 Code
- e0
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 14
- Resistance
- 50Ohm
- Terminal Finish
- Tin/Lead (Sn/Pb)
- Subcategory
- Multiplexer or Switches
- Max Power Dissipation
- 825mW
- Technology
- CMOS
- Number of Functions
- 2
- Supply Voltage
- 15V
- Pin Count
- 14
- Number of Outputs
- 4
- Operating Supply Voltage
- 15V
- Number of Circuits
- 2
- Min Supply Voltage
- 13V
- Nominal Supply Current
- 1nA
- Power Dissipation
- 825mW
- Max Supply Current
- 10?A
- Turn On Delay Time
- 250 ns
- Supply Type
- Dual, Single
- Neg Supply Voltage-Nom (Vsup)
- -15V
- Turn-Off Delay Time
- 150 ns
- Max Dual Supply Voltage
- 22V
- On-State Resistance (Max)
- 50Ohm
- Min Dual Supply Voltage
- 7V
- Dual Supply Voltage
- 15V
- Multiplexer/Demultiplexer Circuit
- 2:1
- Channel Capacitance (CS(off), CD(off))
- 14pF 14pF
- Switch Circuit
- SPDT
- Switch Time (Ton, Toff) (Max)
- 250ns, 150ns
- Charge Injection
- 30pC
- Crosstalk
- -74dB @ 500kHz
- Switching
- BREAK-BEFORE-MAKE
- Voltage - Supply, Dual (V±)
- ±15V
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for VISHAY DG307AAK.
Datasheets:
RohsStatement:
DG307AAK Overview
Packed in 14-CDIP (0.300, 7.62mm), the electronic component is convenient for shipping overseas. Advanced packaging method Tube is used to provide high reliability. This analog switch is mounted in Through Hole. The ratio between the number of multiplexer and demultiplexer circuits is 2:1. Extended operating temperature around -55°C~125°C TA. There are 14 terminations totally. With a 15V voltage supply, the electrical component should be turned on and run. 14 pins are injected to the electronic part body. These analog multiplexers are built based on SPDT switching circuits. This multiplexer is composed of 2 circuits. This digital multiplexer has 50Ohm internal resistance. Please refer to the datasheets for 14 pins functions. This switch device is a typical Multiplexer or Switches. In a normalsituation, users should not supply the switches with voltage higher than 36V. A cost-effective Dual, Single supply type analogue multiplexer. The lowest voltage fed to the electronic component should be 13V. If put voltage greater than 10?A on the device, damage may be caused to the analogue multiplexer. Dual supply volatge is feasible for this multiplexer. But it should not go beyond 22V. You should attach at least 7V voltage if you are using dual power supply. The electronic component can function from 15V. 4 outputs are included in the analogue multiplexer.
DG307AAK Features
Switch Circuit: SPDT
DG307AAK Applications
There are a lot of Vishay Siliconix
DG307AAK Analog Switches & Multiplexers ICs applications.
- High-Voltage
- Transmit
- Low-Voltage
- Isolation
- Medical
- Imaging
- Ultrasound
- Audio and video switching
- Automatic test equipment
- Precision data acquisition
