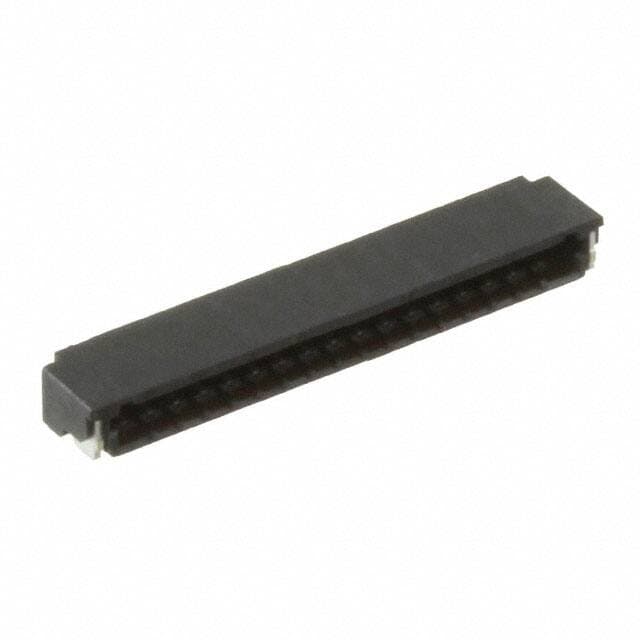

HIROSE DF52-17S-0.8H(21)
HIROSE DF52-17S-0.8H(21)

HIROSE DF52-17S-0.8H(21)

Manufacturer No:

DF52-17S-0.8H(21)

Manufacturer:

HIROSE

Package:

Description:

1 Rows Socket Solder Copper Alloy Surface Mount, Right Angle Tape & Reel (TR) Tin Polyamide (PA), Nylon, Halogen Free 17 Positions Non-Gendered

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF52-17S-0.8H(21) information

HIROSE DF52-17S-0.8H(21) technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF52-17S-0.8H(21).

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Insulation Material
  • Polyamide (PA), Nylon, Halogen Free
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • DF52
  • Feature
  • Glow Wire Compliant, Solder Retention
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Socket
  • Number of Positions
  • 17
  • Number of Rows
  • 1
  • Voltage - Rated
  • 100V
  • Fastening Type
  • Detent Lock
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Non-Gendered
  • Mixed Contacts
  • NO
  • Current Rating (Amps)
  • 1.5A
  • Total Number of Contacts
  • 17
  • Terminal Pitch
  • 0.8mm
  • Insulation Height
  • 0.069 1.75mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • unknown
  • Pitch - Mating
  • 0.031 0.80mm
  • Insulation Color
  • Black
  • Contact Gender
  • FEMALE
  • UL Flammability Code
  • 94V-0
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE DF52-17S-0.8H(21).

Datasheets:

DF52-17S-0.8H(21) Overview


Currently, it is packaged in Socket.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the DF52 Series, it belongs to the range of products of that series.A number of features make the Glow Wire Compliant, Solder Retention feature more powerful.Surface Mount represents the mounting point for the part.-40°C~85°C Operating Temperature is the default operating temperature for the device.

DF52-17S-0.8H(21) Features


DF52 series


DF52-17S-0.8H(21) Applications


There are a lot of Hirose Electric Co Ltd
DF52-17S-0.8H(21) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
