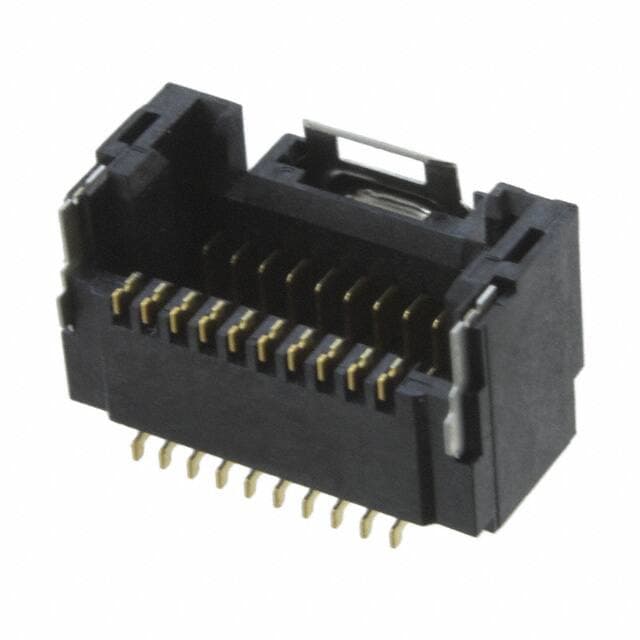

Hirose DF50-20DP-1H(51)
Hirose DF50-20DP-1H(51)

Hirose DF50-20DP-1H(51)

Manufacturer No:

DF50-20DP-1H(51)

Manufacturer:

Hirose

Package:

Description:

DF50 Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Polyester 20-Position Board to Cable/Wire 0.354 9.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF50-20DP-1H(51) information

Hirose DF50-20DP-1H(51) technical specifications, attributes, parameters and parts with similar specifications to Hirose DF50-20DP-1H(51).

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Brass
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Insulation Material
  • Polyester
  • Housing Material
  • Polymer
  • Operating Temperature
  • -35°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • DF50
  • Published
  • 2013
  • Feature
  • Solder Retention
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 20
  • Number of Rows
  • 2
  • Voltage - Rated
  • 100V
  • HTS Code
  • 8536.69.40.40
  • Fastening Type
  • Latch Lock
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Blade
  • Total Number of Contacts
  • 20
  • Terminal Pitch
  • 0.9906mm
  • Insulation Height
  • 0.354 9.00mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.039 1.00mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • PCB Contact Pattern
  • RECTANGULAR
  • Contact Gender
  • Male
  • Rated Current (Signal)
  • 1A
  • Contact Resistance
  • 30mOhm
  • Insulation Resistance
  • 500MOhm
  • Mating Contact Pitch
  • 0.039 inch
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 300VAC V
  • PCB Contact Row Spacing
  • 5.6896 mm
  • Durability
  • 30 Cycles
  • Contact Finish Thickness - Mating
  • 2.00?in 0.051?m

Download datasheets and manufacturer documentation for Hirose DF50-20DP-1H(51).

Datasheets:

DF50-20DP-1H(51) Overview


Packaging for this item is Header.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the DF50 Series.In many ways, its Solder Retention feature makes it more powerful.Surface Mount is used to mount the part.In this case, the device operates at -35°C~85°C Operating Temperature.

DF50-20DP-1H(51) Features


DF50 series


DF50-20DP-1H(51) Applications


There are a lot of Hirose Electric Co Ltd
DF50-20DP-1H(51) Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
