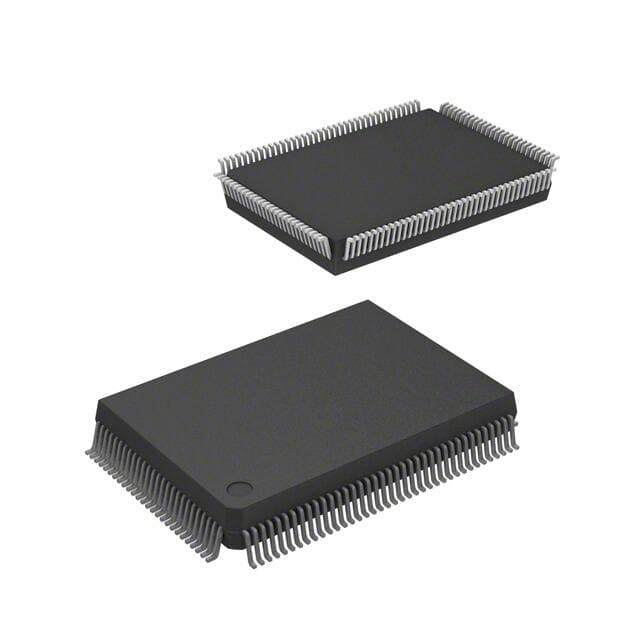

Renesas DF2638UF20JV

Manufacturer No:

DF2638UF20JV

Manufacturer:

Renesas

Package:

128-BFQFP

Description:

256KB 256K x 8 FLASH H8S/2600 16-Bit Microcontroller H8® H8S/2600 Series DF2638 128 Pin 20MHz 128-BFQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF2638UF20JV information

Renesas DF2638UF20JV technical specifications, attributes, parameters and parts with similar specifications to Renesas DF2638UF20JV.

Type
Parameter

Factory Lead Time
24 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
128-BFQFP

Number of Pins
128

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
H8® H8S/2600

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Frequency
20MHz

Base Part Number
DF2638

Operating Supply Voltage
5V

Interface
CAN, I2C, SCI

Memory Size
256kB

Oscillator Type
Internal

Number of I/O
72

RAM Size
16K x 8

Voltage - Supply (Vcc/Vdd)
4.5V~5.5V

Core Processor
H8S/2600

Peripherals
Motor Control PWM, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
16-Bit

Connectivity
CANbus, SCI, SmartCard

Data Converter
A/D 12x10b; D/A 2x8b

Watchdog Timer
Yes

Access Time
20 μs

Number of Timers/Counters
6

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas DF2638UF20JV.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

DF2638UF20JV Overview

The package is in 128-BFQFP format. The MCU has 72 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 16-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~85°C TA. The electrical component that you are looking at belongs to the H8® H8S/2600 series of components. Microcontroller has abundant program memory size of 256KB 256K x 8. The H8S/2600 Core Processor powers the device and is one of its key features. This MCU is implemented with 256kB memory. DF2638 serves as a base part number to find alternatives. It exhibits good efficiency when it operates at a frequency of 20MHz and it is able to operate at a high frequency. It is possible to access the 128 pins on the chip through the 128 pins. It is equipped with 6 timers and counters.
