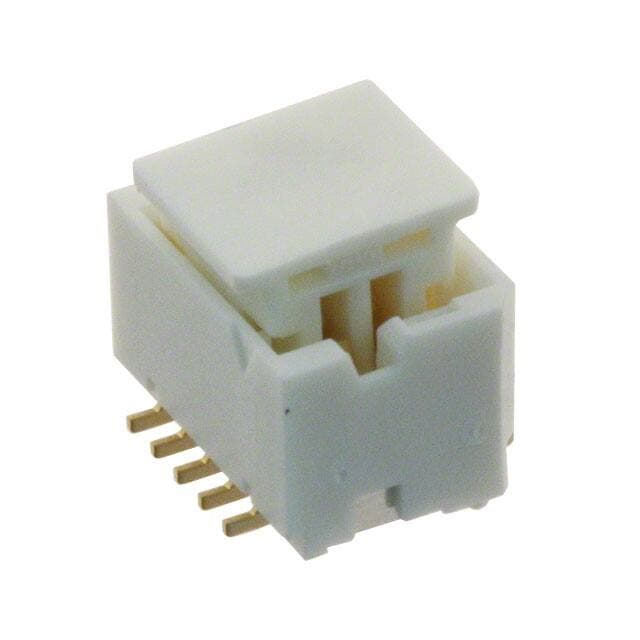

HIROSE DF20G-10DP-1V(56)

Manufacturer No:

DF20G-10DP-1V(56)

Manufacturer:

Package:

Description:

DF20 Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 10-Position Board to Cable/Wire 0.181 4.60mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF20G-10DP-1V(56) information

HIROSE DF20G-10DP-1V(56) technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF20G-10DP-1V(56).

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Phosphor Bronze

Mount
Surface Mount

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Polyamide (PA), Nylon

Housing Material
Polyamide

Operating Temperature
-35°C~85°C

Packaging
Tape & Reel (TR)

Series
DF20

Published
2002

JESD-609 Code
e4

Feature
Board Guide, Pick and Place, Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
10

Color
Beige

Number of Rows
2

Voltage - Rated
100V

Additional Feature
LOW PROFILE

Fastening Type
Push-Pull

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
10

Orientation
Straight

Depth
5.4mm

Insulation Height
0.181 4.60mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.039 1.00mm

Insulation Color
Natural

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.039 (1.00mm)

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
2

Lead Pitch
1mm

PCB Contact Pattern
RECTANGULAR

Download datasheets and manufacturer documentation for HIROSE DF20G-10DP-1V(56).

Datasheets:

hiroseelectriccoltd-df20f2830scfa04-datasheets-7837.pdf

hiroseelectriccoltd-df20g10dp1v56-datasheets-0236.pdf

hiroseelectriccoltd-df20g10dp1v56-datasheets-0237.pdf

DF20G-10DP-1V(56) Overview

The product comes in a package of Header.Surface Mount is the mount type.Tape & Reel (TR) cases are used to package the product.This product is in the DF20 Series.Also, there's LOW PROFILE, to name a few.As a result of its Board Guide, Pick and Place, Solder Retention feature, it possesses a great deal of power.There's a Surface Mount on the part.Operating temperature is -35°C~85°C.

DF20G-10DP-1V(56) Features

DF20 series

DF20G-10DP-1V(56) Applications

There are a lot of Hirose Electric Co Ltd
DF20G-10DP-1V(56) Rectangular Connectors applications.
