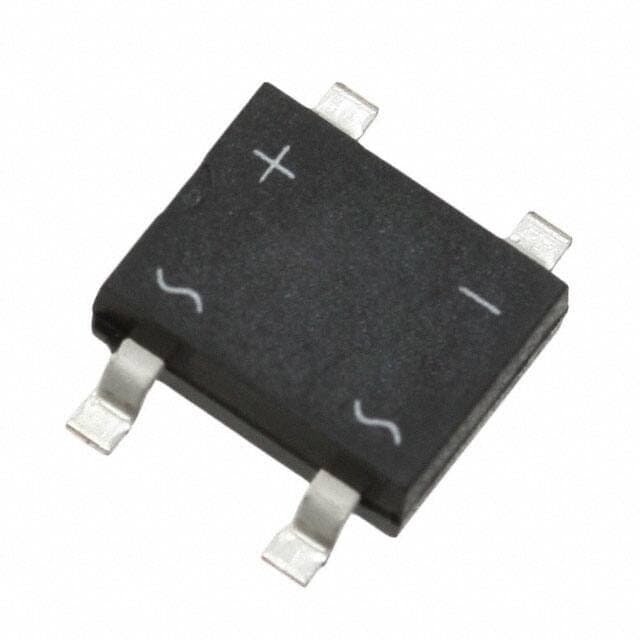

Comchip Technology DF206ST-G
Manufacturer No:
DF206ST-G
Manufacturer:
Package:
4-SMD, Gull Wing
Description:
Single Phase Bridge Rectifier Standard Surface Mount -55°C~150°C TJ 10?A @ 600V 1.1V @ 2A 4-Termination 1-Phase 4-SMD, Gull Wing Tape & Reel (TR)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
DF206ST-G information
Comchip Technology DF206ST-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology DF206ST-G.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 4-SMD, Gull Wing
- Number of Pins
- 4
- Diode Element Material
- SILICON
- Operating Temperature
- -55°C~150°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 2011
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 4
- ECCN Code
- EAR99
- Additional Feature
- UL RECOGNIZED
- Subcategory
- Bridge Rectifier Diodes
- Technology
- Standard
- Terminal Position
- DUAL
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- DF206
- Number of Elements
- 4
- Diode Type
- Single Phase
- Current - Reverse Leakage @ Vr
- 10?A @ 600V
- Voltage - Forward (Vf) (Max) @ If
- 1.1V @ 2A
- Current - Average Rectified (Io)
- 2A
- Number of Phases
- 1
- Non-rep Pk Forward Current-Max
- 60A
- Voltage - Peak Reverse (Max)
- 600V
- Breakdown Voltage-Min
- 600V
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Comchip Technology DF206ST-G.
Datasheets:
DF206ST-G Overview
By using DF206 as the base part number, you can identify several related parts.Electronic components in the 4-SMD, Gull Wing package are basically the same.Surface Mount is the method of mounting the device.The normal operation of the device is ensured when it is operated at the temperature of 0 degrees Celsius.2A is its maximum supported output voltage.
DF206ST-G Features
4-SMD, Gull Wing package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 2A
DF206ST-G Applications
There are a lot of Comchip Technology
DF206ST-G applications of bridge rectifiers.
- Fuse-in-glass diodes design
- Electrically isolated aluminum case
- Motor controls ? Low Voltage and Medium Voltage converters
- SCR power bridges for solid state starters
- SCR and diode based input rectifiers
- Crowbar systems for motor drives
- Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
- Transportation ? Traction rectifiers and auxiliary rectifiers
- Inductive heating ? Input rectifiers
- Welding systems ? Input rectifiers and fast recovery diodes
