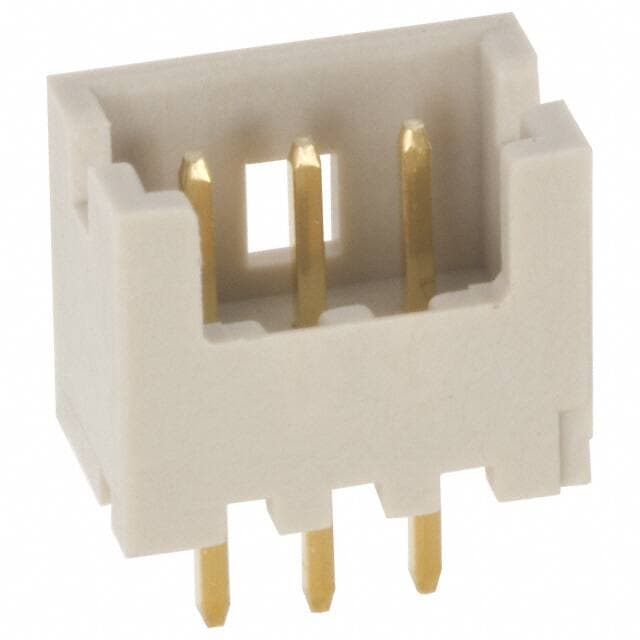

HIROSE DF13-3P-1.25DSA
HIROSE DF13-3P-1.25DSA

HIROSE DF13-3P-1.25DSA

Manufacturer No:

DF13-3P-1.25DSA

Manufacturer:

HIROSE

Package:

Description:

DF13 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon 3-Position Board to Cable/Wire 0.169 4.30mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF13-3P-1.25DSA information

HIROSE DF13-3P-1.25DSA technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF13-3P-1.25DSA.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA), Nylon
  • Housing Material
  • Polyamide
  • Operating Temperature
  • -35°C~85°C
  • Packaging
  • Bulk
  • Series
  • DF13
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 3
  • Number of Rows
  • 1
  • Additional Feature
  • LOW PROFILE
  • Fastening Type
  • Detent Lock
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Orientation
  • Straight
  • Depth
  • 3.4mm
  • Insulation Height
  • 0.169 4.30mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.049 1.25mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.091 2.30mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 1
  • Lead Pitch
  • 1.25mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Contact Gender
  • Male
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Beige
  • Contact Resistance
  • 30mOhm

Download datasheets and manufacturer documentation for HIROSE DF13-3P-1.25DSA.

Datasheets:

DF13-3P-1.25DSA Overview


Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the DF13 Series, it can be found in this category.There are also other features such as LOW PROFILE, to name only a few.In this case, Through Hole mounts the part.The device is operating at -35°C~85°C Operating Temperature.

DF13-3P-1.25DSA Features


DF13 series


DF13-3P-1.25DSA Applications


There are a lot of Hirose Electric Co Ltd
DF13-3P-1.25DSA Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
