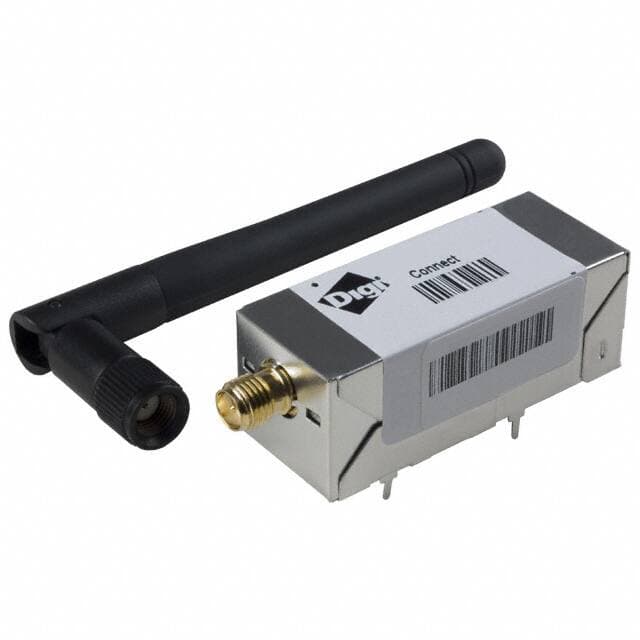

Digi DC-WME-01T-S
Digi DC-WME-01T-S

Digi DC-WME-01T-S

Manufacturer No:

DC-WME-01T-S

Manufacturer:

Digi

Package:

Module

Description:

2.4GHz WiFi -30°C~75°C 3.3V Bulk Antenna Not Included, RP-SMA 11Mbps 16dBm 802.11b -92dBm Module

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DC-WME-01T-S information

Digi DC-WME-01T-S technical specifications, attributes, parameters and parts with similar specifications to Digi DC-WME-01T-S.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Module
  • Operating Temperature
  • -30°C~75°C
  • Packaging
  • Bulk
  • Series
  • Digi Connect® Wi-ME
  • Published
  • 2005
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 75°C
  • Min Operating Temperature
  • -30°C
  • Voltage - Supply
  • 3.3V
  • Frequency
  • 2.4GHz
  • Max Output Current
  • 650mA
  • Operating Supply Voltage
  • 3.3V
  • Interface
  • Serial
  • Memory Size
  • 4MB Flash 8MB SDRAM
  • RAM Size
  • 7.6MB
  • Data Rate
  • 11Mbps
  • Protocol
  • 802.11b
  • Core Architecture
  • ARM
  • Power - Output
  • 16dBm
  • RF Family/Standard
  • WiFi
  • Antenna Type
  • Antenna Not Included, RP-SMA
  • Current - Receiving
  • 270mA
  • Current - Transmitting
  • 270mA
  • Modulation
  • CCK, DBPSK, DQPSK
  • Sensitivity (dBm)
  • -92 dBm
  • Height
  • 21.69mm
  • Length
  • 46.99mm
  • Width
  • 19.05mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Digi DC-WME-01T-S.

Datasheets:

PCN Design/Specification:

DC-WME-01T-S Overview


Surface Mount is used to mount the RF Transceiver.optimized performance is achieved by utilizing the Bulk package in this RF Transceiver module.During Transceiver operation, the operating temperature should remain at -30°C~75°C.In the Digi Connect® Wi-ME family, this part palys an important role in RF Transceiver Module's traget applications.It is possible to supply 3.3V volts to the RF Transceiver.RF Transceiver Modules operate with a frequency of 2.4GHz Hz.This Transceiver is widely used in many applications because of its Surface Mount mount.

DC-WME-01T-S Features


Surface Mount
Bulk package
3.3V volts


DC-WME-01T-S Applications


There are a lot of Digi
DC-WME-01T-S RF Transceiver Modules applications.


  • Internet of Things (IoT)
  • Secure Payment
  • Home and Security
  • Health and Fitness
  • Industrial and Data Logger
  • LED Lighting
  • Utility and Smart Energy
  • Thermostats
  • Smart Meters
  • HVAC
