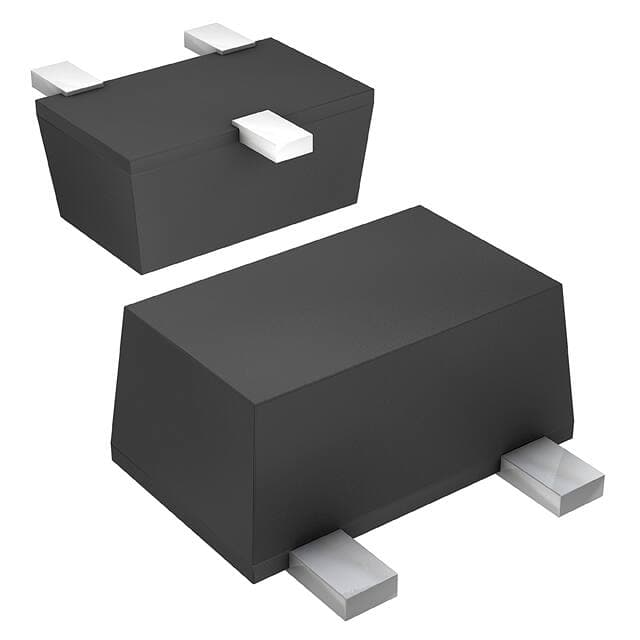

ROHM DAN217WMTL

Manufacturer No:

DAN217WMTL

Manufacturer:

ROHM

Package:

SC-89, SOT-416FL, 3 PIN

Description:

Description: DIODE ARRAY GP 80V 100MA EMD3F

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAN217WMTL information

ROHM DAN217WMTL technical specifications, attributes, parameters and parts with similar specifications to ROHM DAN217WMTL.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
ROHM CO LTD

Package Description
SC-89, SOT-416FL, 3 PIN

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8541.10.00.70

Factory Lead Time
17 Weeks

Samacsys Manufacturer
ROHM Semiconductor

Additional Feature
HIGH RELIABILITY

Application
GENERAL PURPOSE

Configuration
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Diode Element Material
SILICON

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
1.2 V

JESD-30 Code
R-PDSO-F3

JESD-609 Code
e3

Non-rep Pk Forward Current-Max
4 A

Number of Elements
2

Number of Phases
1

Number of Terminals
3

Operating Temperature-Max
150 °C

Output Current-Max
0.1 A

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Power Dissipation-Max
0.15 W

Rep Pk Reverse Voltage-Max
80 V

Reverse Current-Max
0.1 µA

Reverse Recovery Time-Max
0.004 µs

Reverse Test Voltage
70 V

Surface Mount
YES

Terminal Finish
Tin (Sn)

Terminal Form
FLAT

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Download datasheets and manufacturer documentation for ROHM DAN217WMTL.

Datasheets:

rohmsemiconductor-dan217wmtl-datasheets-9457.pdf

DAN217WMTL Overview

There will be no operation of this device when the forward voltage is set to 100mA.

DAN217WMTL Features

DAN217WMTL Applications

There are a lot of ROHM Semiconductor
DAN217WMTL applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
