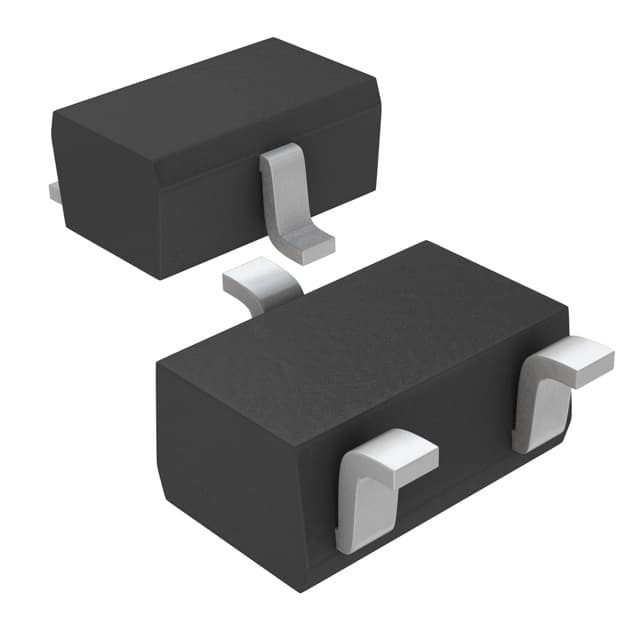

ROHM DAN202UT106

Manufacturer No:

DAN202UT106

Manufacturer:

ROHM

Package:

SC-70, 3 PIN

Description:

Description: Rectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, SC-70, 3 PIN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAN202UT106 information

ROHM DAN202UT106 technical specifications, attributes, parameters and parts with similar specifications to ROHM DAN202UT106.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Not Recommended

Ihs Manufacturer
ROHM CO LTD

Part Package Code
SC-70

Package Description
SC-70, 3 PIN

Pin Count
3

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8541.10.00.70

Samacsys Manufacturer
ROHM Semiconductor

Additional Feature
HIGH RELIABILITY

Application
GENERAL PURPOSE

Configuration
COMMON CATHODE, 2 ELEMENTS

Diode Element Material
SILICON

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
1.2 V

JESD-30 Code
R-PDSO-G3

JESD-609 Code
e1

Moisture Sensitivity Level
1

Non-rep Pk Forward Current-Max
4 A

Number of Elements
2

Number of Terminals
3

Operating Temperature-Max
150 °C

Package Body Material
PLASTIC/EPOXY

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
260

Power Dissipation-Max
0.15 W

Qualification Status
Not Qualified

Rep Pk Reverse Voltage-Max
80 V

Reverse Current-Max
0.1 µA

Reverse Recovery Time-Max
0.004 µs

Surface Mount
YES

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
GULL WING

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
10

Download datasheets and manufacturer documentation for ROHM DAN202UT106.

DAN202UT106 Overview

In the case of 1.2V forward voltage, the device will operate.0.1A is the maximum output voltage array can support.Array is important to monArrayor the surge current and make sure that Array does not exceed 300mA.In the case of 300mA forward voltage, the device will operate.From the part, a current of 100mA can be drawn.An approximate capacitance of 3.5pF farads is present in this device.Powered by reverse voltage, this device has a peak voltage of 100nA.This semiconductor device's maximal reverse leakage current is 100nA kA, which is its reverse leakage current when reverse biased.A derivative of the primary action of this electronic or electrical device is heat (energy loss).Electronic or electrical devices that produce the most 200mW heat (energy waste or loss).

DAN202UT106 Features

1.2V forward voltage
a maximum output voltage of 0.1A
3.5pF farads
a peak voltage of 100nA
a reverse voltage peak of 100nA

DAN202UT106 Applications

There are a lot of ROHM Semiconductor
DAN202UT106 applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
