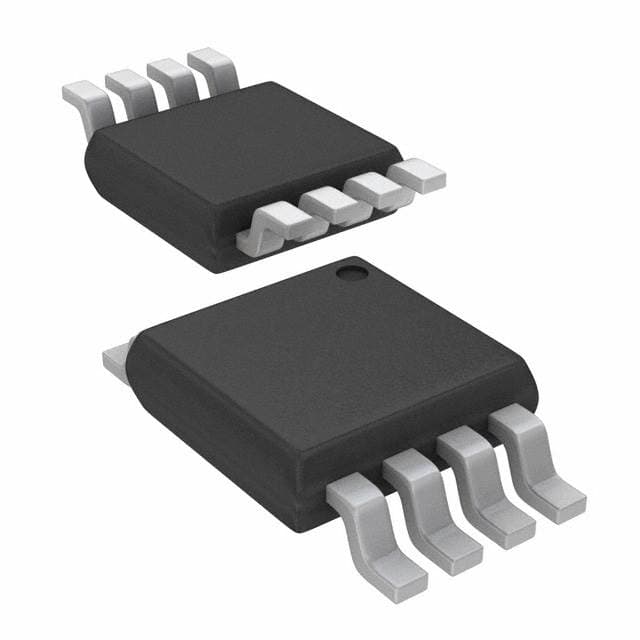

TI DAC8560IADGKTG4

Manufacturer No:

DAC8560IADGKTG4

Manufacturer:

Package:

VSSOP

Description:

88 dB dB DAC Voltage 2 B B 3mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAC8560IADGKTG4 information

TI DAC8560IADGKTG4 technical specifications, attributes, parameters and parts with similar specifications to TI DAC8560IADGKTG4.

Type
Parameter

Contact Plating
Gold

Package / Case
VSSOP

Surface Mount
YES

Number of Pins
8

Weight
25.996513mg

Packaging
Tape and Reel

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
8

Max Operating Temperature
105°C

Min Operating Temperature
-40°C

Subcategory
Other Converters

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

Qualification Status
Not Qualified

Output Type
Voltage

Polarity
Unipolar

Power Supplies
3/5V

Interface
SPI

Max Supply Voltage
5.5V

Min Supply Voltage
2.7V

Power Dissipation-Max
4.7mW

Nominal Supply Current
530?A

Number of Bits
16

Converter Type
D/A CONVERTER

Supply Type
Single

Resolution
2 B

Sampling Rate
200 ksps

Settling Time
8 ?s

Power Consumption
2.6mW

Integral Nonlinearity (INL)
12 LSB

Input Bit Code
BINARY

Number of Converters
1

Conversion Rate
200 ksps

Signal to Noise Ratio (SNR)
88 dB

Input Format
SERIAL

Analog Output Voltage-Max
2.5005V

Differential Nonlinearity
1 LSB

Spurious-free dynamic range (SFDR)
79 dB

Length
3mm

Width
3mm

Download datasheets and manufacturer documentation for TI DAC8560IADGKTG4.

DAC8560IADGKTG4 Overview

As part of the VSSOP package, it is included. It is powered from a supply voltage of 3V. The Other Converters family of FPGA parts includes this part. In order to save space, this FPGA model has been contained in Tape and Reel. There are a total of 8 terminations. There are 8 pins on this device. An external power supply of 3/5V is required to power the device. There is a maximum operating temperature of 105°C for this module. It is recommended that the operating temperature be higher than -40°C. There are a total of 8 pins on this device. There is a maximum supply voltage of 5.5V that is supported by this product. With a minimum supply voltage of 2.7V, it can operate.

DAC8560IADGKTG4 Features

VSSOP package
8 pin count
8 pins

DAC8560IADGKTG4 Applications

There are a lot of Texas Instruments
DAC8560IADGKTG4 Digital to Analog Converters (DAC) applications.

Video Encoder
Display Electronics
Data Acquisition Systems
Calibration
Motor Control
Data Distribution System
Digital Potentiometer
Software Radio
Wireless infrastructure:
WCDMA, CDMA2000, TD-SCDMA, WiMAX
