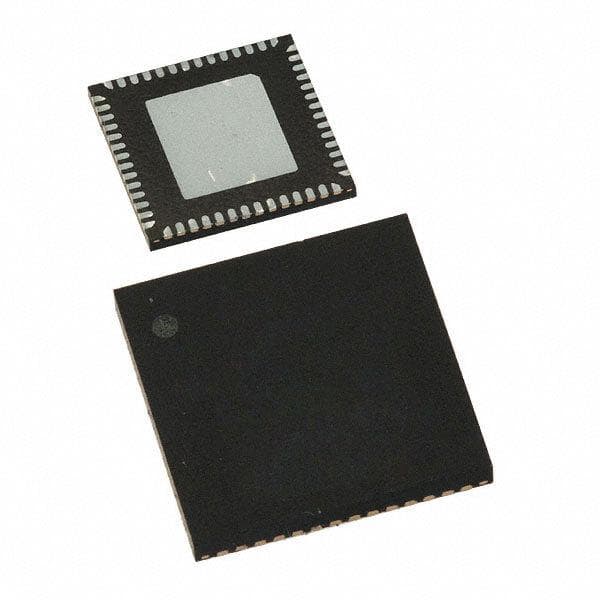

Renesas DAC1658D1G5NLGA

Manufacturer No:

DAC1658D1G5NLGA

Manufacturer:

Renesas

Package:

Description:

DAC 2 B B 8mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAC1658D1G5NLGA information

Renesas DAC1658D1G5NLGA technical specifications, attributes, parameters and parts with similar specifications to Renesas DAC1658D1G5NLGA.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Number of Pins
56

Packaging
Bulk

Published
2013

Number of Terminations
56

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Supply Voltage
1.2V

Terminal Pitch
0.5mm

Polarity
Unipolar

Temperature Grade
INDUSTRIAL

Interface
Serial

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

Power Dissipation-Max
844mW

Operating Supply Current
123mA

Number of Bits
16

Converter Type
D/A CONVERTER

Differential Output
Yes

Sampling Rate
1.5 Gsps

Settling Time
20 ?s

Conversion Rate
2 Gsps

Number of D/A Converters
2

Voltage Reference
700mV

Length
8mm

Height Seated (Max)
0.9mm

Width
8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas DAC1658D1G5NLGA.

Datasheets:

integrateddevicetechnology-dac1658d1g5nlga-datasheets-3620.pdf

DAC1658D1G5NLGA Overview

Power is provided by a 1.2V-volt supply. A model of this FPGA is contained in Bulk for the purpose of saving space. In total, there are a total of 56 terminations on it. This cable has 56 pins and is designed to connect to a computer. Providing the FPGA is mounted in Surface Mount as per the specifications of the IC, then it should work perfectly according to its specifications. A maximum operating temperature of 85°C can be reached by this module. Over -40°C should be the operating temperature. It can take a maximum of 3.45V as the supply voltage. Using a supply voltage as low as 3.15V, it will work. During operation, it uses 123mA of supply current.
