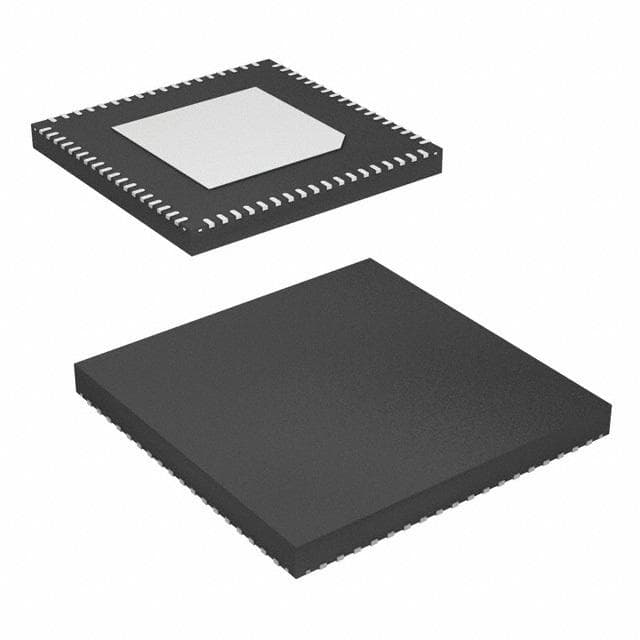

Renesas DAC1617D1G0HN-C18

Manufacturer No:

DAC1617D1G0HN-C18

Manufacturer:

Renesas

Package:

Description:

DAC 2 B B 1mm ?m 10mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAC1617D1G0HN-C18 information

Renesas DAC1617D1G0HN-C18 technical specifications, attributes, parameters and parts with similar specifications to Renesas DAC1617D1G0HN-C18.

Type
Parameter

Mount
Surface Mount

Number of Pins
72

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
72

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Converters

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
72

Qualification Status
Not Qualified

Polarity
Unipolar

Power Supplies
1.81.8/3.3V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.45V

Min Supply Voltage
1.7V

Number of Bits
16

Supply Current-Max
585mA

Converter Type
D/A CONVERTER

Differential Output
Yes

Resolution
2 B

Settling Time
20 ?s

Conversion Rate
1 Gsps

Number of DAC Channels
2

Height
1mm

Length
10mm

Width
10mm

Thickness
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas DAC1617D1G0HN-C18.

Datasheets:

integrateddevicetechnology-dac1617d1g0hnc18-datasheets-8415.pdf

DAC1617D1G0HN-C18 Overview

Part of the Other Converters family, this FPGA part is a programmable gate array. In total, it has a total of 72 terminations. In this case, 72 pins are used in the design. In my opinion, this FPGA could produce fantastic results if mounted in Surface Mount, provided that its specifications are followed. In order for it to work, it requires a 1.81.8/3.3V power supply. When this module is operated at its maximum operating temperature, it reaches 85°C. A higher operating temperature than -40°C is recommended. A total of 72 pins are included in this device. This device is capable of supporting a maximum supply voltage of 3.45V. Using 1.7V as the minimum supply voltage, it can operate.
