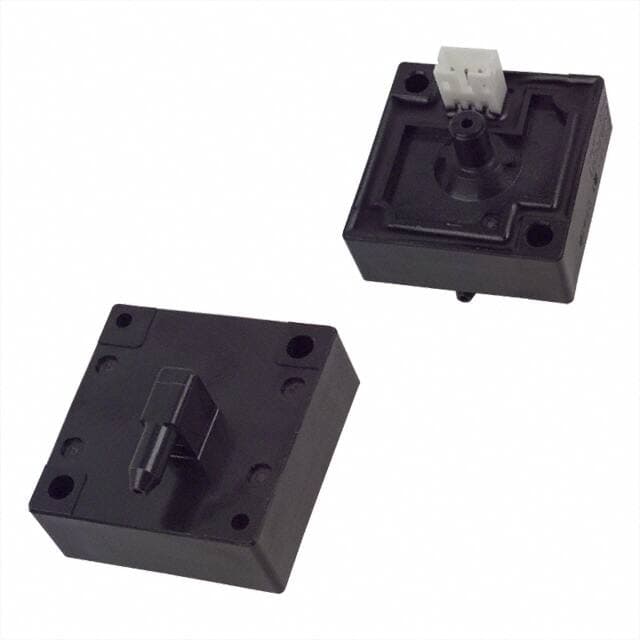

OMRON D8M-R1

Manufacturer No:

D8M-R1

Manufacturer:

OMRON

Package:

Module

Description:

Vented Gauge Pressure Sensor Frequency -20°C~70°C 0.03PSI (0.2kPa) Barbless ±2% 4.2V~5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

D8M-R1 information

OMRON D8M-R1 technical specifications, attributes, parameters and parts with similar specifications to OMRON D8M-R1.

Type
Parameter

Factory Lead Time
9 Weeks

Package / Case
Module

Surface Mount
NO

Mounting Feature
PANEL MOUNT

Number of Pins
3

Operating Temperature
-20°C~70°C

Published
2002

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Applications
Board Mount

Voltage - Rated
5.5V

Voltage - Rated DC
5.5V

Voltage - Supply
4.2V~5.5V

Reach Compliance Code
unknown

Termination Style
Cable

Output Type
Frequency

Operating Supply Voltage
5V

Nominal Supply Current
10mA

Accuracy
±2%

Operating Pressure
0.03PSI (0.2kPa)

Pressure Type
Vented Gauge

Port Style
Barbless

Port Size
Male - 0.16 4.06mm Tube

Linearity
2 %

Sensors/Transducers Type
PRESSURE SENSOR,CAPACITIVE

Housing
PLASTIC

Max Pressure
0.44 PSI

Pressure Range-Max
0.028 Psi

Pressure Sensing Mode
GAGE

Height
18.8mm

Length
30mm

Width
30mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for OMRON D8M-R1.

Datasheets:

omronelectronicsincemcdiv-d8mr1-datasheets-3468.pdf

D8M-R1 Overview

For convenience, this transducer is included in the Module package. The temperature of the transducers should be set to -20°C~70°C to ensure reliable performance. The transducers can operate well with a supply voltage of 4.2V~5.5V. For the transducers to work properly, 3 pins must be connected in order to make it work. The maximum pressure range set by this transducer is 0.028 Psi. The transducers can have a normal operation with nominal supply current of 10mA. DC voltage should be 5.5V so that the transducers can continuously operate at the rated ambient temperature.
