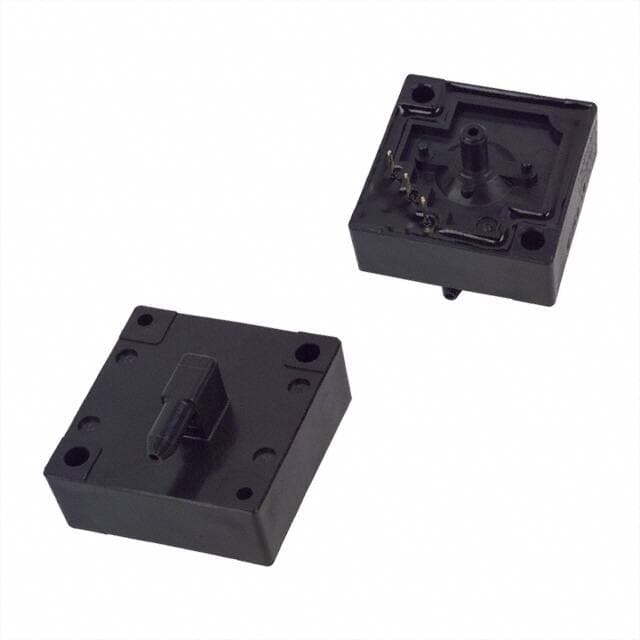

OMRON D8M-A1

Manufacturer No:

D8M-A1

Manufacturer:

OMRON

Package:

3-SIP Module

Description:

Vented Gauge Pressure Sensor Wheatstone Bridge -30°C~70°C 0.71PSI (4.9kPa) Barbless ±2% 15 mV ~ 1247 mV (2.2V) 0V~2.2V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

D8M-A1 information

OMRON D8M-A1 technical specifications, attributes, parameters and parts with similar specifications to OMRON D8M-A1.

Type
Parameter

Package / Case
3-SIP Module

Surface Mount
NO

Mounting Feature
PANEL MOUNT

Number of Pins
3

Operating Temperature
-30°C~70°C

Published
2002

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Applications
Board Mount

Voltage - Rated DC
2.2V

Voltage - Supply
0V~2.2V

Reach Compliance Code
unknown

Output
15 mV ~ 1247 mV (2.2V)

Termination Style
Cable

Output Voltage
1.247V

Output Type
Wheatstone Bridge

Operating Supply Voltage
2.2V

Nominal Supply Current
2.5mA

Accuracy
±2%

Operating Pressure
0.71PSI (4.9kPa)

Pressure Type
Vented Gauge

Port Style
Barbless

Port Size
Male - 0.16 4.06mm Tube

Maximum Pressure
8.53PSI (58.8kPa)

Housing
PLASTIC

Max Pressure
8.53 PSI

Pressure Range-Max
0.71 Psi

Pressure Sensing Mode
GAGE

Offset-Nom
15MV

Height
18.8mm

Length
30mm

Width
30mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for OMRON D8M-A1.

Datasheets:

omronelectronicsincemcdiv-d8md1-datasheets-4943.pdf

D8M-A1 Overview

The Transducer 3-SIP Module is included in the package for convenience. It is recommended to set the temperature of the transducers to -30°C~70°C to ensure reliable operation. The transducers are capable of operating well at 0V~2.2V supply voltage. In order for the transducers to function properly, the 3 pins must be connected. This transducer can handle pressures up to 0.71 Psi. If the nominal supply current is 2.5mA, the transducers will operate normally. This device must work at 1.247V voltage from the transducers. In order to keep the transducers at the temperature they are rated for, the DC voltage needs to be 2.2V.

D8M-A1 Features

Moisture Sensitivity Level: Not Applicable
Package / Case: 3-SIP Module
Operating Temperature: -30°C~70°C
3 Pins
Operating Pressure: 0.71PSI (4.9kPa)
Operating Supply Voltage: 2.2V

D8M-A1 Applications

There are a lot of Omron Electronics Inc-EMC Div
D8M-A1 Transducers applications.

Weather Forecasting
Hydrogen Storage
Refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure, process controls and automation
Dry air system monitoring
Hydraulic, brake, and engine oil fluid pressure monitoring
Air brake pressure monitoring
Vertical velocity indication (e.g. rise/sink speed)
Internet of things
Enhancement of GPS navigation
