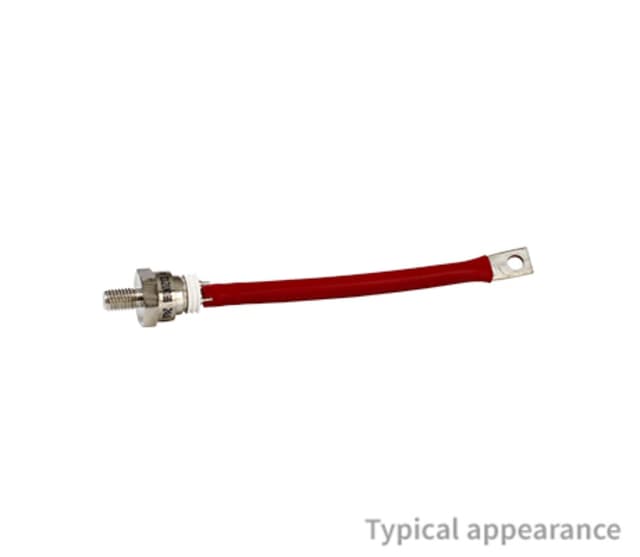

INFINEON D56S45C

Manufacturer No:

D56S45C

Manufacturer:

INFINEON

Package:

Description:

RECTIFIER DIODE Diode Rectifier 1-Termination

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

D56S45C information

INFINEON D56S45C technical specifications, attributes, parameters and parts with similar specifications to INFINEON D56S45C.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Stud

Number of Pins
272

Diode Element Material
SILICON

Published
2006

Part Status
Active

Number of Terminations
1

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

HTS Code
8541.10.00.80

Terminal Position
UPPER

Terminal Form
SOLDER LUG

JESD-30 Code
O-MUPM-D1

Number of Elements
1

Element Configuration
Single

Diode Type
RECTIFIER DIODE

Forward Current
102A

Max Surge Current
1.55kA

Application
GENERAL PURPOSE

Halogen Free
Halogen Free

Number of Phases
1

Reverse Recovery Time
3.3 ?s

Peak Reverse Current
5mA

Peak Non-Repetitive Surge Current
1.55kA

Reverse Voltage
4.5kV

Max Forward Surge Current (Ifsm)
1.35kA

Recovery Time
3.3 ?s

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for INFINEON D56S45C.

Datasheets:

infineon-d56s45c-datasheets-1580.pdf

infineon-d56s45c-datasheets-0486.pdf

ConflictMineralStatement:

infineon-b43821a4225m000-conflictmineralstatement-7662.pdf

D56S45C Overview

A reasonable reverse voltage is 4.5kV.When the forward current reaches 102A, it is allowed.The maximum surge current is 1.55kA.A data chart shows that the peak reverse is 5mA in the datasheets.

D56S45C Features

the peak reverse is 5mA

D56S45C Applications

There are a lot of Infineon
D56S45C applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
