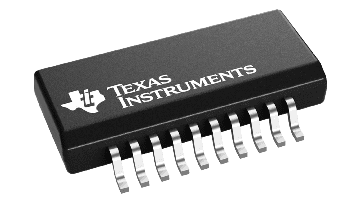

Texas Instruments CY74FCT273ATQCTG4
Manufacturer No:
CY74FCT273ATQCTG4
Manufacturer:
Package:
Description:
Octal D-Type Flip-Flops with Clear
Quantity:
In Stock :5503
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
CY74FCT273ATQCTG4 Information
Texas Instruments CY74FCT273ATQCTG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CY74FCT273ATQCTG4.
- Type
- Parameter
- Number of channels
- 8
- Technology family
- FCT
- Supply voltage (min) (V)
- 4.75
- Supply voltage (max) (V)
- 5.25
- Input type
- TTL, TTL-Compatible CMOS
- Output type
- CMOS, Push-Pull
- Clock frequency (max) (MHz)
- 100
- IOL (max) (mA)
- 64
- IOH (max) (mA)
- -32
- Supply current (max) (µA)
- 200
- Type
- Parameter
- Features
- Partial power down (Ioff), Very high speed (tpd 5-10ns)
- Operating temperature range (°C)
- -40 to 85
- Rating
- Catalog
- Package
- SOIC (DW)
- Pins
- 20
- Size
- 131.84 mm² 12.8 x 10.3
- Package
- SSOP (DBQ)
- Pins
- 20
- Size
- 51.9 mm² 8.65 x 6
- REACH Status
- Yes
Download datasheets and manufacturer documentation for Texas Instruments CY74FCT273ATQCTG4.
Selection guide:
Data sheet:
The \x92FCT273T devices consist of eight edge-triggered D-type flip-flops with individual D inputs and Q outputs. The common buffered-clock (CP) and master-reset (MR\) inputs load and reset all flip-flops simultaneously. These devices are edge-triggered registers. The state of each D input (one setup time before the low-to-high clock transition) is transferred to the corresponding flip-flop\x92s Q output. All outputs are forced low by a low logic level on the MR\ input.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Function, Pinout, and Drive Compatible With FCT and F Logic
- Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
- Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics
- Ioff Supports Partial-Power-Down Mode Operation
- Matched Rise and Fall Times
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
- Fully Compatible With TTL Input and Output Logic Levels
- CY54FCT273T
- 32-mA Output Sink Current
- 12-mA Output Source Current
- CY74FCT273T
- 64-mA Output Sink Current
- 32-mA Output Source Current
