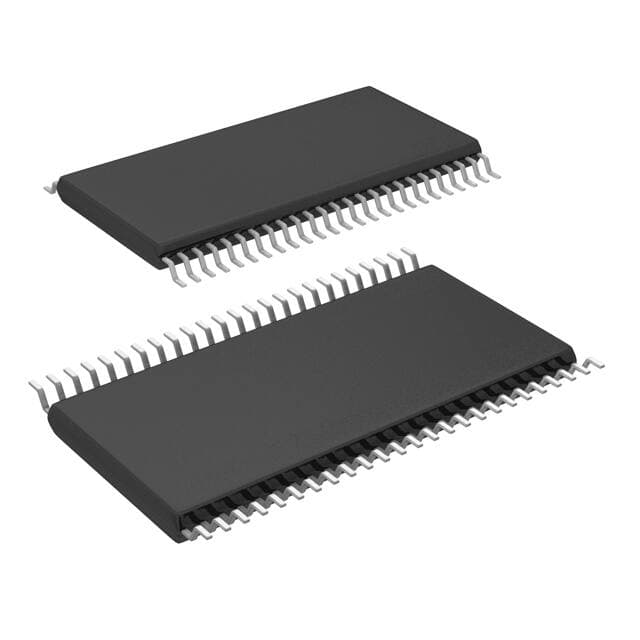

TI CY74FCT16244TPACT

Manufacturer No:

CY74FCT16244TPACT

Manufacturer:

Package:

48-TFSOP (0.240, 6.10mm Width)

Description:

DUAL Buffer, Non-Inverting 4.5V~5.5V 3-State Buffers 74FCT Series 74FCT16244 48 Pins 32mA 64mA 48-TFSOP (0.240, 6.10mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CY74FCT16244TPACT information

TI CY74FCT16244TPACT technical specifications, attributes, parameters and parts with similar specifications to TI CY74FCT16244TPACT.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-TFSOP (0.240, 6.10mm Width)

Number of Pins
48

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
74FCT

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

Subcategory
Bus Driver/Transceivers

Packing Method
TR

Max Power Dissipation
1W

Technology
CMOS

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74FCT16244

Pin Count
48

Qualification Status
Not Qualified

Output Type
3-State

Operating Supply Voltage
5V

Number of Elements
4

Polarity
Non-Inverting

Power Supplies
5V

Load Capacitance
50pF

Number of Ports
2

Number of Bits
4

Propagation Delay
6.5 ns

Quiescent Current
500?A

Turn On Delay Time
8 ns

Family
FCT

Logic Function
Buffer, Inverting

Current - Output High, Low
32mA 64mA

Logic Type
Buffer, Non-Inverting

Control Type
ENABLE LOW

Number of Input Lines
16

Count Direction
UNIDIRECTIONAL

Download datasheets and manufacturer documentation for TI CY74FCT16244TPACT.

PCN Packaging:

texasinstruments-sn74lvc16373adggr-pcnpackaging-9694.pdf

Datasheets:

texasinstruments-cy74fct16244tpact-datasheets-2077.pdf

texasinstruments-cy74fct16244tpact-datasheets-2078.pdf

CY74FCT16244TPACT Overview

Logical driver uses a neat 48-TFSOP (0.240, 6.10mm Width) package. Tape & Reel (TR) external packaging. Available in Surface Mount. Voltage buffer adopts Buffer, Non-Inverting logic prototype. Buffer IC is fed with a voltage of 4.5V~5.5V. Qualified to operate within -40°C~85°C TA. The high and low logic state output current of logical driver is 32mA 64mA. Logical driver can deal with 3-State output (s). All of the 4 elements are put into use. Digital buffer is one of the 74FCT series devices. 48 terminations with different functions. Buffer IC reuqires a supply voltage of 5V. Transceiver shares the FCT family's comprehensive benefits and features. 48 pins are set with the electric part. Buffer IC is suitable for Surface Mount applications. Logical driver has 48 pins. Enhanced with 2 ports. You can search "74FCT16244" for other related electrical components. Specifically, digital transciever is a kind of Bus Driver/Transceivers. In quiescent state, the electronic part uses 500?A. It is recommended to use a 5V power supply. It is generally sold in TR package. To run the part safely and stably in a circuit, 5V recommends users apply 5V on the logical driver. 4 bits are included within the electrical component. Because of its 16 lines level input capability, buffer IC is more cost-effective on transimitting signals. ENABLE LOW control technology is used to start up the automotive buffer.
