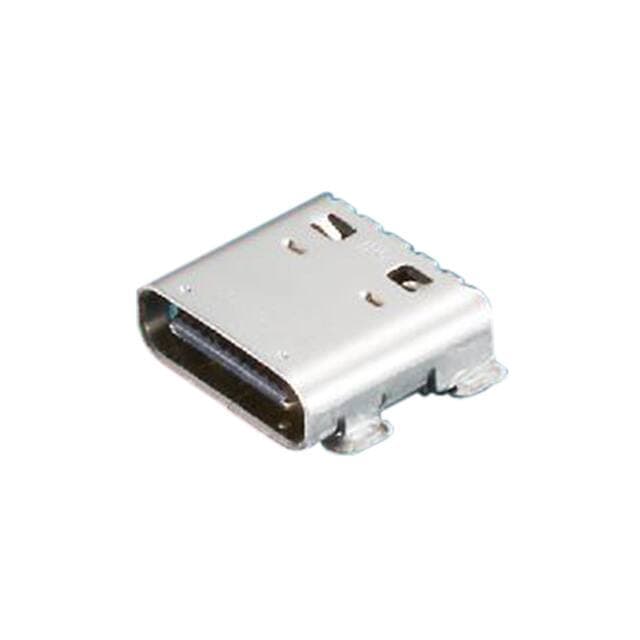

Hirose CX90B1-24P

Manufacturer No:

CX90B1-24P

Manufacturer:

Hirose

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CX90B1-24P information

Hirose CX90B1-24P technical specifications, attributes, parameters and parts with similar specifications to Hirose CX90B1-24P.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
COPPER ALLOY

Mounting Type
Surface Mount, Right Angle; Through Hole

Mounting Feature
Horizontal, Reversible

Insulation Material
POLYETHYLENE

Shell Material
STAINLESS STEEL

Shell/Shielding Material
Steel, Stainless

Operating Temperature
-30°C~85°C

Packaging
Tape & Reel (TR)

Series
CX

Published
2018

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
USB-C (USB TYPE-C)

Gender
Receptacle

Voltage - Rated
20VAC

HTS Code
8536.69.40.30

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
0.25A 1.25A

Shielding
Shielded

Insulation Color
Black

Shell Finish
NICKEL

Contact Finish
Gold

Number of Contacts
24

UL Flammability Code
94V-0

Empty Shell
NO

Number of Ports
1

Mating Cycles
10000

Specifications
USB 3.1 (USB 3.1 Gen 2, Superspeed+)

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Hirose CX90B1-24P.

Datasheets:

hiroseelectriccoltd-cx6024s1000c-datasheets-5956.pdf

hiroseelectriccoltd-cx70m24p1-datasheets-3579.pdf

hiroseelectriccoltd-cx90b124p-datasheets-8732.pdf

hiroseelectriccoltd-cx90b124p-datasheets-8733.pdf

Hirose USB, DVI, HDMI Connectors CX90B1-24P are a series of USB 3.1 Type-C connectors designed for use in a variety of applications. These connectors feature a 24-pin SMD right-angle configuration and are designed to provide reliable and secure connections for USB, DVI, and HDMI devices. The connectors are designed to be robust and durable, with a high-temperature rating of up to 105°C. They are also designed to be easy to install and maintain, with a low profile design and a simple snap-in mounting system.

Features of the Hirose USB, DVI, HDMI Connectors CX90B1-24P include:

? 24-pin SMD right-angle configuration
? High-temperature rating of up to 105°C
? Low profile design
? Simple snap-in mounting system
? Robust and durable construction

The Hirose USB, DVI, HDMI Connectors CX90B1-24P are ideal for a variety of applications, including:

? Connecting USB, DVI, and HDMI devices
? Connecting computers and peripherals
? Connecting audio/video equipment
? Connecting gaming consoles and accessories
? Connecting home theater systems
