CW Industries CWR-280-25-0203

Manufacturer No:

CWR-280-25-0203

Manufacturer:

Package:

Description:

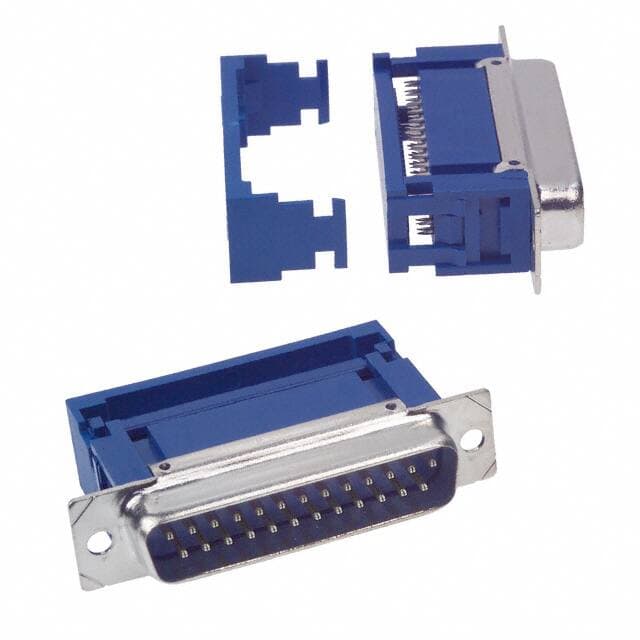

CWR Series D-Sub Receptacle, Male Pins 25-Position Signal IDC, Ribbon Cable 3 DB B Free Hanging (In-Line) Phosphor Bronze Tin Steel, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CWR-280-25-0203 information

CW Industries CWR-280-25-0203 technical specifications, attributes, parameters and parts with similar specifications to CW Industries CWR-280-25-0203.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Phosphor Bronze

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Dielectric Material
Thermoplastic

Shell Material, Finish
Steel, Tin Plated

Packaging
Bulk

Series
CWR

Published
2002

Feature
Feed Through, Shielded, Strain Relief

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IDC, Ribbon Cable

Connector Type
Receptacle, Male Pins

Number of Positions
25

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Color
Blue

Number of Rows
2

Subcategory
D Type Connectors

Contact Type
Signal

Total Number of Contacts
25

Current Rating
1A

Contact Finish
Tin

Reliability
COMMERCIAL

Body Breadth
0.5 inch

Body Depth
0.53 inch

Rated Current (Signal)
1A

Wire Gauge
28-30 AWG

Insulation Resistance
5000000000Ohm

Flange Feature
Housing/Shell (Unthreaded)

Mating Contact Pitch
0.108 inch

Dielectric Withstanding Voltage
500VDC V

Connector Style
D-Sub

Mating Contact Row Spacing
0.11 inch

Shell Size, Connector Layout
3 DB B

Height
26mm

Length
53.1mm

Width
12.5mm

Contact Finish Thickness
100.0?in 2.54?m

Plating Thickness
100?in

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for CW Industries CWR-280-25-0203.

Datasheets:

cwindustries-cwr280370203-datasheets-3453.pdf

CWR-280-25-0203 Overview

It comes in Receptacle, Male Pins packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the CWR Series.You should use it when it's below 125°C.A minimum temperature of -55°C is required for the operation of this device.In many ways, its Feed Through, Shielded, Strain Relief feature makes it more powerful.Free Hanging is used to mount the part.

CWR-280-25-0203 Features

CWR series

CWR-280-25-0203 Applications

There are a lot of CW Industries
CWR-280-25-0203 D-Sub Connectors applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
