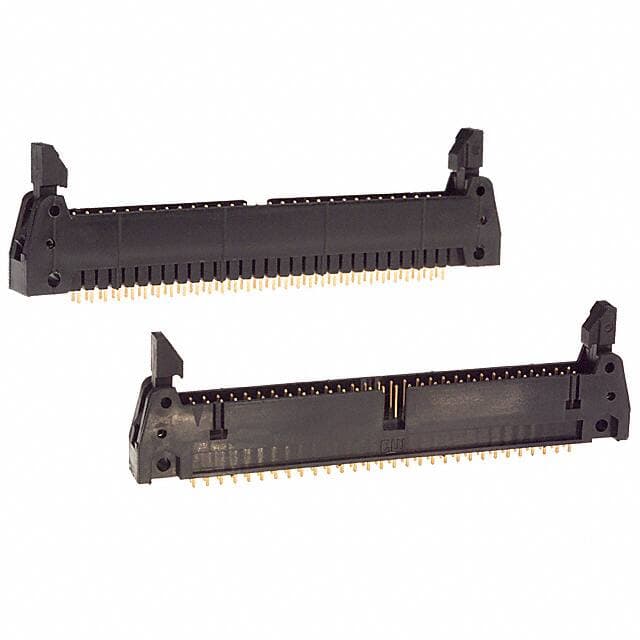

CW Industries CWN-551-60-0060

Manufacturer No:

CWN-551-60-0060

Manufacturer:

Package:

Description:

CWN Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Thermoplastic 60-Position Board to Cable/Wire 0.681 17.30mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CWN-551-60-0060 information

CW Industries CWN-551-60-0060 technical specifications, attributes, parameters and parts with similar specifications to CW Industries CWN-551-60-0060.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Circular

Insulation Material
Thermoplastic

Housing Material
Plastic

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
CWN

Published
2004

Feature
Keying Slot

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
60

Color
Blue

Number of Rows
2

Gender
Male

Fastening Type
Latch Lock/Eject Hooks, Short

Contact Finish - Mating
Gold

Contact Type
Male Pin

Insulation Height
0.681 17.30mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Contact Length - Post
0.090 2.29mm

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
2

Contact Finish - Post
Nickel

Contact Length - Mating
0.240 6.10mm

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.36 inch

Body Depth
0.681 inch

Insulation Resistance
5000000000Ohm

Mating Contact Pitch
0.1 inch

Polarization Key
POLARIZED HOUSING

Dielectric Withstanding Voltage
500VDC V

Height
17.3mm

Length
95.5mm

Download datasheets and manufacturer documentation for CW Industries CWN-551-60-0060.

CWN-551-60-0060 Overview

Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the CWN Series, it is one of the most popular.A number of benefits can be derived from the Keying Slot feature of this application.Through Hole is the mounting point for the part.-55°C~125°C Operating Temperature is used by the device.

CWN-551-60-0060 Features

CWN series

CWN-551-60-0060 Applications

There are a lot of CW Industries
CWN-551-60-0060 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
