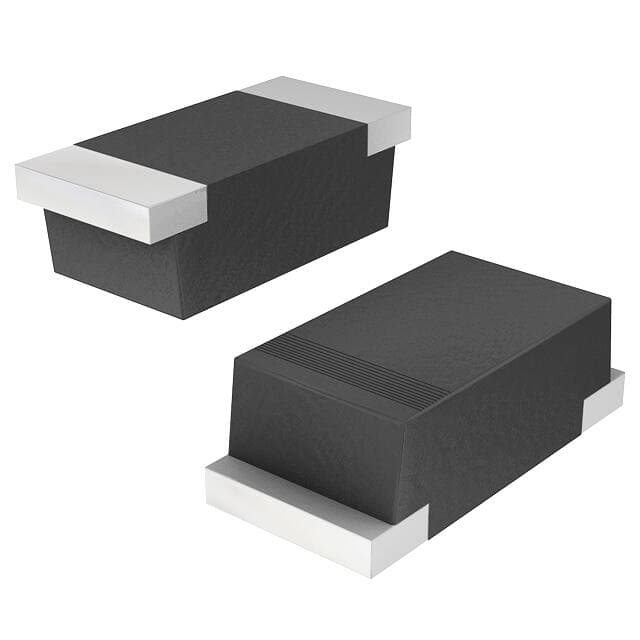

Comchip Technology CURMT103-HF
Manufacturer No:
CURMT103-HF
Manufacturer:
Package:
SOD-123H
Description:
Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1V @ 1A -55°C~150°C 5?A @ 200V Tape & Reel (TR) SOD-123H Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CURMT103-HF information
Comchip Technology CURMT103-HF technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology CURMT103-HF.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SOD-123H
- Packaging
- Tape & Reel (TR)
- Published
- 2011
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Terminal Finish
- TIN
- Max Operating Temperature
- 150°C
- Min Operating Temperature
- -55°C
- HTS Code
- 8541.10.00.80
- Subcategory
- Rectifier Diodes
- Peak Reflow Temperature (Cel)
- 260
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- CURMT103
- Number of Elements
- 1
- Configuration
- SINGLE
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Diode Type
- Standard
- Current - Reverse Leakage @ Vr
- 5?A @ 200V
- Voltage - Forward (Vf) (Max) @ If
- 1V @ 1A
- Max Surge Current
- 25A
- Output Current-Max
- 1A
- Max Reverse Voltage (DC)
- 200V
- Average Rectified Current
- 1A
- Reverse Recovery Time
- 50 ns
- Peak Reverse Current
- 150?A
- Reverse Voltage
- 200V
- Recovery Time
- 50 ns
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Comchip Technology CURMT103-HF.
Datasheets:
CURMT103-HF Overview
An acceptable reverse voltage would be 200V.As a result, this device has a rectified current of 1A volts on average.There is no maximum value for 25A surge current.Using the output current as an example, 1A is the maximum value.Based on the data charts in the datasheets, the peak reverse is 150?A.
CURMT103-HF Features
an average rectified current of 1A volts
1A is the maximum value
the peak reverse is 150?A
CURMT103-HF Applications
There are a lot of Comchip Technology
CURMT103-HF applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
