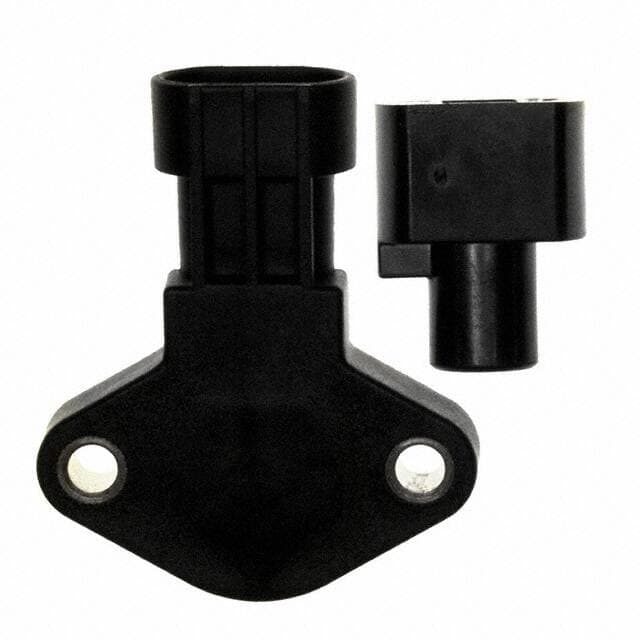

ZF Electronics CU103602

Manufacturer No:

CU103602

Manufacturer:

ZF Electronics

Package:

Box with Connector

Description:

For Measuring Angle Connector External Magnet, Included -40°C~125°C Analog Voltage 5V ±3.5% 0° ~ 360°, Continuous Clockwise Increase Box with Connector

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CU103602 information

ZF Electronics CU103602 technical specifications, attributes, parameters and parts with similar specifications to ZF Electronics CU103602.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Chassis Mount

Package / Case
Box with Connector

Operating Temperature
-40°C~125°C

Packaging
Box

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Technology
Hall Effect

Voltage - Supply
5V

Output
Analog Voltage

Termination Style
Connector

Actuator Type
External Magnet, Included

Linearity
±3.5%

For Measuring
Angle

Output Signal
Clockwise Increase

Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ZF Electronics CU103602.

Datasheets:

zfelectronics-as500106-datasheets-3433.pdf

zfelectronics-an820002-datasheets-6126.pdf

CU103602 Overview

In order to prevent damage to the linear position measurement sensors, they are packaged in Box with Connector packages. Electronic components are packaged in Box.

CU103602 Features

Supply Voltage: 5V
Operating Temperature: -40°C~125°C
Package / Case: Box with Connector
Mounting Type: Chassis Mount

CU103602 Applications

There are a lot of ZF Electronics
CU103602 Angle & Linear Position Measuring Sensors applications.

Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
