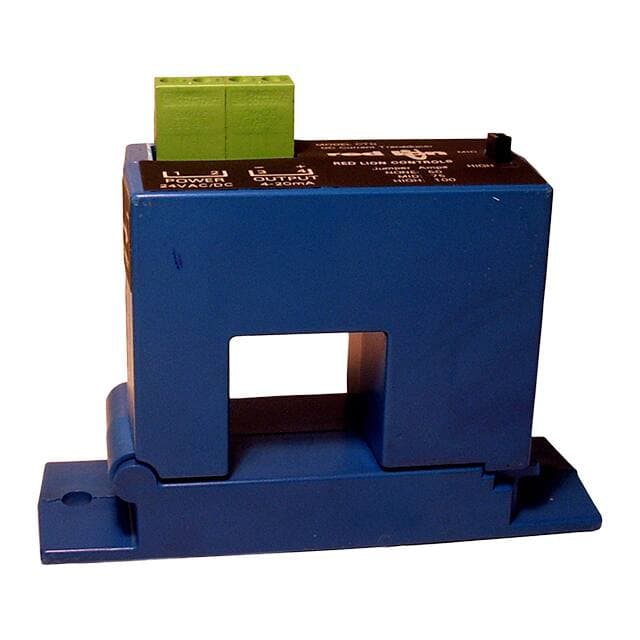

Red Lion Controls CTD00000

Manufacturer No:

CTD00000

Manufacturer:

Red Lion Controls

Package:

Module, Single Pass Through

Description:

Hall Effect, Open Loop Sensor 1-Channel Bidirectional -20°C~50°C 24V 50A 75A 100A Selectable Accuracy-±1% Linearity-±0.75%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CTD00000 information

Red Lion Controls CTD00000 technical specifications, attributes, parameters and parts with similar specifications to Red Lion Controls CTD00000.

Type
Parameter

Factory Lead Time
2 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
Module, Single Pass Through

Operating Temperature
-20°C~50°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
24V

Output
Ratiometric, 4mA ~ 20mA

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
84mA

Accuracy
±1%

Response Time
100ms

Sensor Type
Hall Effect, Open Loop

Linearity
±0.75%

For Measuring
DC

Current - Sensing
50A 75A 100A Selectable

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Red Lion Controls CTD00000.

CTD00000 Overview

For safety reasons, the current sensors are packaged in Module, Single Pass Through packages. In order to protect the devices from damage, these current sensors are packaged in the Bulk. Current sensors should not supply more current than 84mA.

CTD00000 Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -20°C~50°C
1 Channels
Mounting Type: Chassis Mount
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 24V
Sensing Current: 50A 75A 100A Selectable
Module, Single Pass Through Package

CTD00000 Applications

There are a lot of Red Lion Controls
CTD00000 Current Sensors applications.

Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
