QUALCOMM CSR1013A05-IUUM-R
QUALCOMM CSR1013A05-IUUM-R

QUALCOMM CSR1013A05-IUUM-R

Manufacturer No:

CSR1013A05-IUUM-R

Manufacturer:

QUALCOMM

Package:

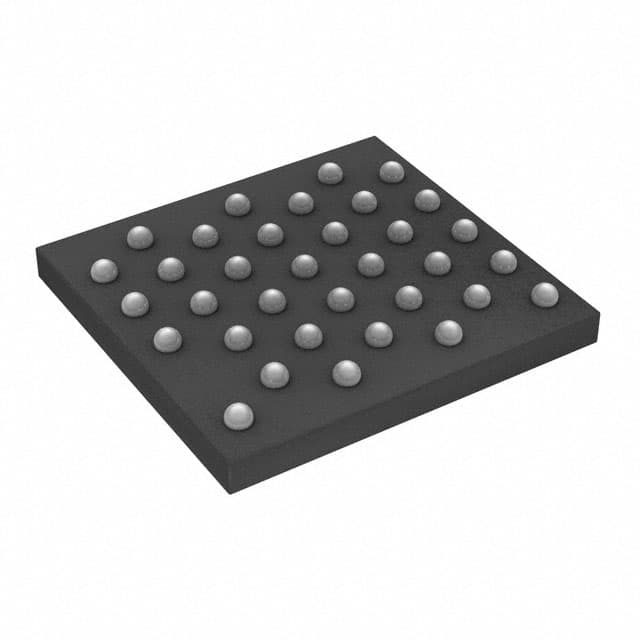

34-XFBGA, WLCSP

Description:

TxRx + MCU 2.4GHz 1.2V~3.6V I2C, SPI, UART 3.69Mbaud 20mA - Receiving 18mA - Transmitting 64kB RAM 64kB ROM 13 34-XFBGA, WLCSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CSR1013A05-IUUM-R information

QUALCOMM CSR1013A05-IUUM-R technical specifications, attributes, parameters and parts with similar specifications to QUALCOMM CSR1013A05-IUUM-R.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 34-XFBGA, WLCSP
  • Operating Temperature
  • -30°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • µEnergy®
  • Published
  • 2015
  • Pbfree Code
  • yes
  • Part Status
  • Not For New Designs
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Type
  • TxRx + MCU
  • Voltage - Supply
  • 1.2V~3.6V
  • Frequency
  • 2.4GHz
  • Interface
  • I2C, SPI, UART
  • Memory Size
  • 64kB RAM 64kB ROM
  • Protocol
  • Bluetooth v4.0
  • Power - Output
  • 9dBm
  • RF Family/Standard
  • Bluetooth
  • Data Rate (Max)
  • 3.69Mbaud
  • Serial Interfaces
  • I2C, SPI, UART
  • Current - Receiving
  • 20mA
  • Current - Transmitting
  • 18mA
  • Sensitivity (dBm)
  • -92.5 dBm
  • GPIO
  • 13
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for QUALCOMM CSR1013A05-IUUM-R.

CSR1013A05-IUUM-R Overview


The board's 34-XFBGA, WLCSP package saves space. RF transceiver's mounting is done by using Surface Mount.It is highly reliable and high-performing when it emerges as a TxRx + MCU.In order to provide high reliability, advanced transceiver RF' packaging Tape & Reel (TR) is used.A RF transceiver from the well-known µEnergy® series of products is being offered here.RF transceiver operates at 2.4GHz frequency.

CSR1013A05-IUUM-R Features


34-XFBGA, WLCSP package
Surface Mount for mounting
TxRx + MCU
Tape & Reel (TR) is used
µEnergy® series


CSR1013A05-IUUM-R Applications


There are a lot of Qualcomm
CSR1013A05-IUUM-R RF Transceiver ICs applications.


  • Chemical Sensors
  • Security Systems
  • M2M Communication
  • Remote Device Management
  • Low-power IoT applications
  • LoT applications
  • Power Amplifier (PA)
  • Low Noise Amplifier (LNA)
  • Transmit
  • Receive
