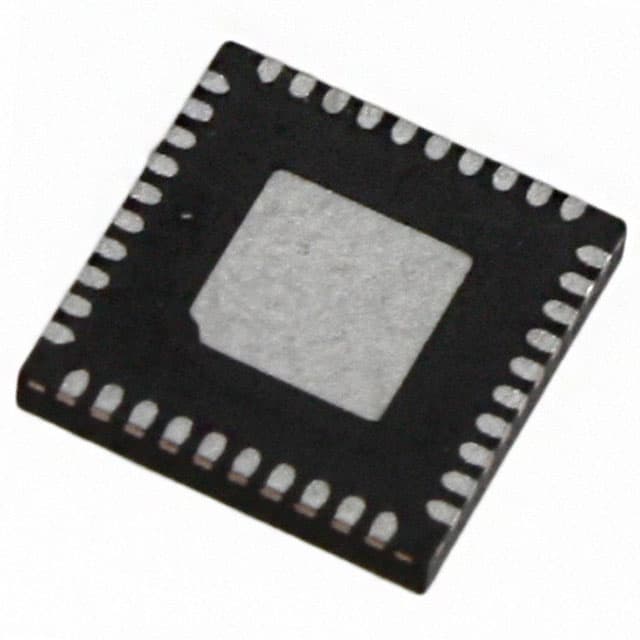

Renesas CSPT857CNLG

Manufacturer No:

CSPT857CNLG

Manufacturer:

Renesas

Package:

Description:

2.5V V 6mm mm Application Specific Timer 6mm mm 0.5mm mm 6mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CSPT857CNLG information

Renesas CSPT857CNLG technical specifications, attributes, parameters and parts with similar specifications to Renesas CSPT857CNLG.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Number of Pins
40

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
40

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
40

Qualification Status
Not Qualified

Power Supplies
2.5V

Temperature Grade
COMMERCIAL

Number of Circuits
1

Min Supply Voltage
2.18V

Frequency (Max)
220MHz

Family
857

Output Characteristics
3-STATE

Input
Clock

Propagation Delay (tpd)
4.5 ns

Same Edge Skew-Max (tskwd)
0.075 ns

Number of True Outputs
10

Length
6mm

Width
6mm

Thickness
900?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas CSPT857CNLG.

Datasheets:

integrateddevicetechnology-cspt857cnlg-datasheets-2464.pdf

CSPT857CNLG Overview

Clock program contains 40 terminations. There is 2.5V voltage provided by the part. To run 260, we use the peak reflow temperature of this part. The device has 1. normaloperation has a frequency of 220MHz. The part has been published 2006 times. Mounting it with Surface Mount is recommended. There are 40 pins on the device. There are 40 pins on it. A minimum working temperature of 0°C must be maintained for this device. Circuits application is recommended that the operating temperature be less than 70°C. In terms of supply voltage, this part is used under 2.7V. A supply voltage greater than 2.18V must be maintained on the device. A related part search can be done based on the 857 family.
