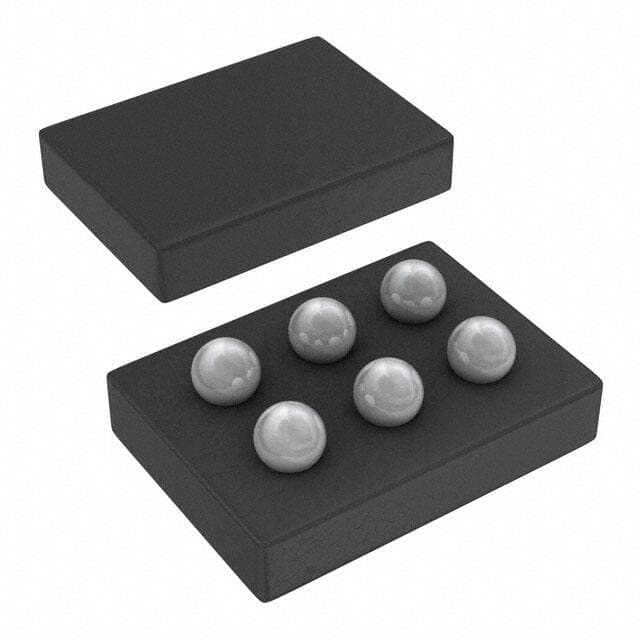

TI CSD25301W1015
TI CSD25301W1015

TI CSD25301W1015

Manufacturer No:

CSD25301W1015

Manufacturer:

TI

Package:

6-UFBGA, DSBGA

Description:

MOSFET (Metal Oxide) P-Channel Tape & Reel (TR) 75m ? @ 1A, 4.5V ±8V 270pF @ 10V 2.5nC @ 4.5V 6-UFBGA, DSBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CSD25301W1015 information

TI CSD25301W1015 technical specifications, attributes, parameters and parts with similar specifications to TI CSD25301W1015.

  • Type
  • Parameter
  • Contact Plating
  • Copper, Silver, Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-UFBGA, DSBGA
  • Number of Pins
  • 6
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • NexFET?
  • JESD-609 Code
  • e1
  • Pbfree Code
  • no
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • Subcategory
  • Other Transistors
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Base Part Number
  • CSD25301
  • Pin Count
  • 6
  • Configuration
  • SINGLE WITH BUILT-IN DIODE
  • Power Dissipation-Max
  • 1.5W Ta
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 1.5W
  • Turn On Delay Time
  • 4 ns
  • FET Type
  • P-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 75m ? @ 1A, 4.5V
  • Vgs(th) (Max) @ Id
  • 1V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 270pF @ 10V
  • Current - Continuous Drain (Id) @ 25°C
  • 2.2A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 2.5nC @ 4.5V
  • Rise Time
  • 2ns
  • Drive Voltage (Max Rds On,Min Rds On)
  • 1.5V 4.5V
  • Vgs (Max)
  • ±8V
  • Fall Time (Typ)
  • 12 ns
  • Turn-Off Delay Time
  • 29 ns
  • Continuous Drain Current (ID)
  • 2.2A
  • Gate to Source Voltage (Vgs)
  • 8V
  • Drain-source On Resistance-Max
  • 0.22Ohm
  • Drain to Source Breakdown Voltage
  • 20V
  • Dual Supply Voltage
  • 20V
  • Nominal Vgs
  • 750 mV

CSD25301W1015 Description


The device's design aims to produce the lowest gate charge and on resistance while maintaining outstanding thermal properties in an extremely low profile. These devices are made to offer a high level of dv/dt capability for the most demanding applications in addition to a significant reduction in on-resistance.



CSD25301W1015 Features


?Lowest Possible Qg and Qgd


?Minimum Footprint


?Small Profile Height of 0.62 mm


?Bp Free


? RoHS conformant


?Free of Halogen


?CSP Wafer Level Package 1 x 1.5 mm



CSD25301W1015 Applications


?Management of batteries


?Charge Switch


?Battery Security
