Manufacturer No:

CS42438-DMZ

Manufacturer:

CIRRUS LOGIC

Package:

52-QFP

Description:

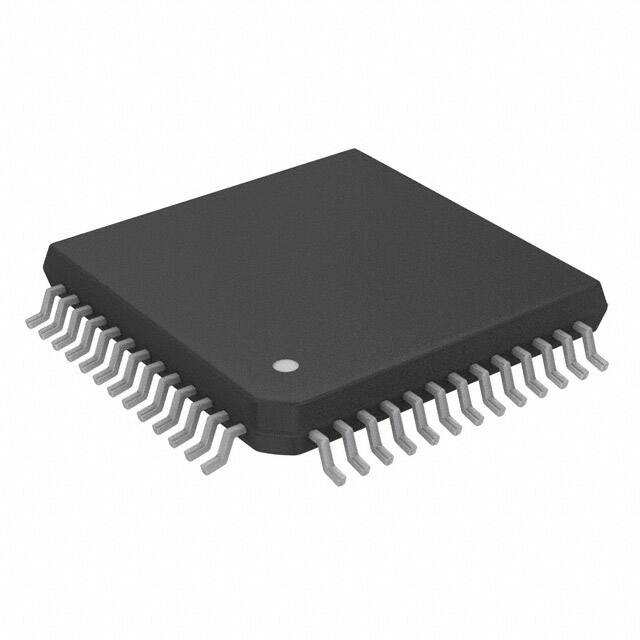

52 Termination 3.35V Tin CODEC CS42438 52 Pin 192kHz 52-QFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS42438-DMZ information

CIRRUS LOGIC CS42438-DMZ technical specifications, attributes, parameters and parts with similar specifications to CIRRUS LOGIC CS42438-DMZ.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 52-QFP
  • Number of Pins
  • 52
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Published
  • 2001
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Not For New Designs
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 52
  • Type
  • Audio
  • Subcategory
  • Other Consumer ICs
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Frequency
  • 192kHz
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • CS42438
  • Qualification Status
  • Not Qualified
  • Supply Voltage-Max (Vsup)
  • 5.25V
  • Power Supplies
  • 3.35V
  • Supply Voltage-Min (Vsup)
  • 3.14V
  • Number of Channels
  • 8
  • Interface
  • I2C, SPI, Serial
  • Number of Bits
  • 24
  • Data Interface
  • Serial
  • Sampling Rate
  • 192 ksps
  • Voltage - Supply, Analog
  • 3.14V~5.25V
  • Voltage - Supply, Digital
  • 3.14V~3.47V
  • Number of A/D Converters
  • 6
  • Resolution (Bits)
  • 24 b
  • Sigma Delta
  • Yes
  • Number of ADCs / DACs
  • 6 / 8
  • Dynamic Range, ADCs / DACs (db) Typ
  • 105 / 108 (Differential), 102 / 105 (Single-Ended)
  • Length
  • 10mm
  • Height Seated (Max)
  • 2.45mm
  • Width
  • 10mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for CIRRUS LOGIC CS42438-DMZ.

Datasheets:

CS42438-DMZ Overview


It is supplied in the 52-QFP package for the purpose of space saving. The packaging way of Tray is adopted. As a type of Audio, this electronic part is able to deliver high-efficient performance in various applications. It employs Surface Mount as its mounting type. It is able to operate normally when the operating performance is set at -40°C~105°C. It is integrated with 6 / 8 ADCs / DACs. The analog circuit is provided with the supply voltage of 3.14V~5.25V. The digital circuit is provided with the supply voltage of 3.14V~3.47V. There are 52 terminations used to prevent signals from reflecting off the end of the transmission line. It is a kind of 52-pin electronic device. It is configured with 52 pins. Its base part number CS42438 can be used to find more related parts. It is mounted to a PCB based on the Surface Mount technology. There are 6 A/D converters used to convert the analog signals into digital signals. This electronic part is classified into the subcategory of Other Consumer ICs. It operates with power supplies of 3.35V. It supports a minimum supply voltage of 3.14V. It is designed with 8 channels for data transmission. It supports a maximum supply voltage of 5.25V. There are 24 bits provided to store information.
