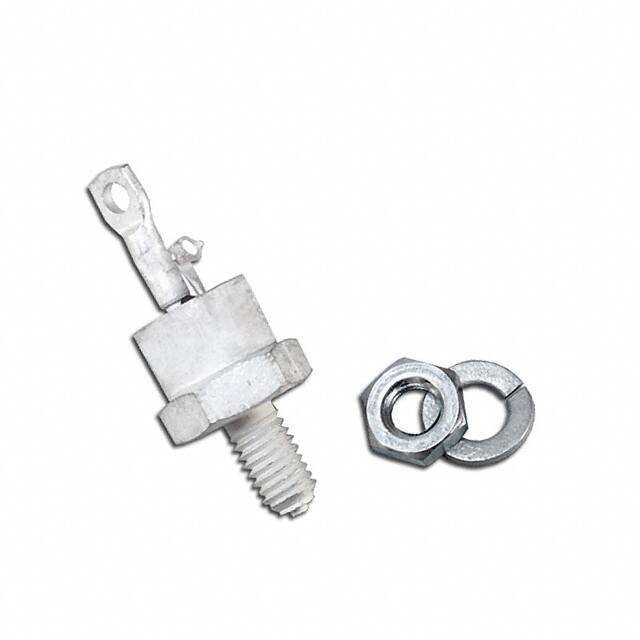

LITTELFUSE CS23-08IO2
LITTELFUSE CS23-08IO2

LITTELFUSE CS23-08IO2

Manufacturer No:

CS23-08IO2

Manufacturer:

LITTELFUSE

Package:

TO-208AA, TO-48-3, Stud

Description:

SCR Standard Recovery -40°C~125°C 1.8V-On State (Vtm) (Max) 3mA-Current - Off State (Max) 2-Termination Bulk TO-208AA, TO-48-3, Stud Chassis, Stud Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS23-08IO2 information

LITTELFUSE CS23-08IO2 technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE CS23-08IO2.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Chassis, Stud
  • Mounting Type
  • Chassis, Stud Mount
  • Package / Case
  • TO-208AA, TO-48-3, Stud
  • Number of Pins
  • 3
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Bulk
  • Published
  • 2000
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 2
  • Terminal Finish
  • Tin (Sn)
  • Subcategory
  • Silicon Controlled Rectifiers
  • Voltage - Rated DC
  • 800V
  • Terminal Position
  • UPPER
  • Terminal Form
  • UNSPECIFIED
  • Current Rating
  • 25A
  • Pin Count
  • 2
  • JESD-30 Code
  • O-MUPM-X2
  • Number of Elements
  • 1
  • Configuration
  • SINGLE
  • Max Repetitive Reverse Voltage (Vrrm)
  • 800V
  • Hold Current
  • 100mA
  • Trigger Device Type
  • SCR
  • Voltage - Off State
  • 800V
  • Voltage - Gate Trigger (Vgt) (Max)
  • 2.5V
  • Current - Non Rep. Surge 50, 60Hz (Itsm)
  • 450A 480A
  • Current - Gate Trigger (Igt) (Max)
  • 50mA
  • Current - On State (It (AV)) (Max)
  • 32A
  • SCR Type
  • Standard Recovery
  • Voltage - On State (Vtm) (Max)
  • 1.8V
  • Critical Rate of Rise of Off-State Voltage-Min
  • 1000V/us
  • Current - Off State (Max)
  • 3mA
  • Circuit Commutated Turn-off Time-Nom
  • 60 µs
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE CS23-08IO2.

Datasheets:

CS23-08IO2 Overview


There is no RMS current (Irms) for the current, since RMS currents do not take into account direction.There is no maximum repetitive reverse voltage for this device, as it has no maximum repetitive reverse voltage (Vrrm).Electrical, electromagnetic, and electronic devices have holding currents (hypostatic), which are the minimum currents required to maintain their 'ON' states.

CS23-08IO2 Features


its RMS current (Irms) is 50A
its current can be 100mA


CS23-08IO2 Applications


There are a lot of IXYS
CS23-08IO2 applications of SCRs thyristors.


  • DC motor control and drives
  • Battery charges
  • Welders
  • Power converters
  • Lighting control
  • Heat and temperature control
  • Motor starters
  • DC motor controls - AC motor controls
  • Uninterruptable power supplies
  • Wind mill
