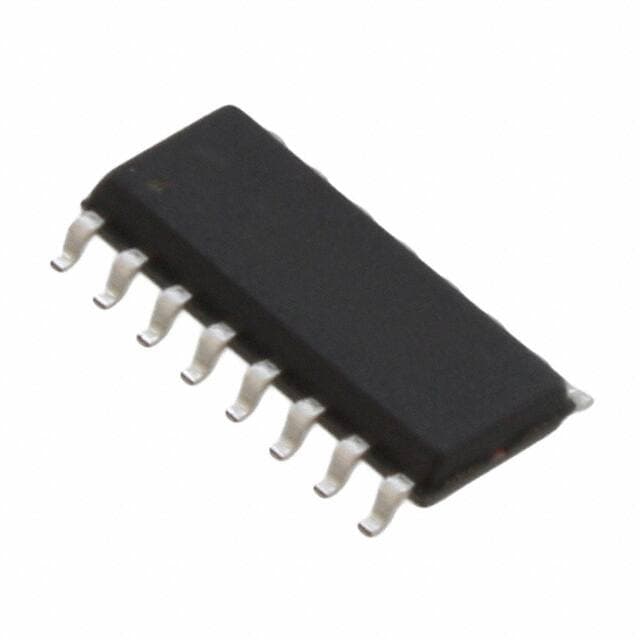

CIRRUS LOGIC CS1630-FSZ

Manufacturer No:

CS1630-FSZ

Manufacturer:

CIRRUS LOGIC

Package:

16-SOIC (0.154, 3.90mm Width) Exposed Pad

Description:

Tin PMIC 625Hz~200kHz 12V 16-SOIC (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS1630-FSZ information

CIRRUS LOGIC CS1630-FSZ technical specifications, attributes, parameters and parts with similar specifications to CIRRUS LOGIC CS1630-FSZ.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.154, 3.90mm Width) Exposed Pad

Operating Temperature
-40°C~125°C TJ

Packaging
Bulk

Published
2004

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Type
AC DC Offline Switcher

Applications
Lighting

Subcategory
Display Drivers

Max Power Dissipation
100mW

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
12V

Frequency
625Hz~200kHz

Number of Outputs
1

Max Supply Voltage
17V

Output Current
5mA

Max Supply Current
5.8mA

Internal Switch(s)
No

fmax-Min
0.4 MHz

Dimming
Triac

Number of Segments
2

Voltage - Supply (Min)
11V

Data Input Mode
SERIAL

Length
9.9mm

Width
3.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CIRRUS LOGIC CS1630-FSZ.

CS1630-FSZ Overview

Board space is saved by its 16-SOIC (0.154, 3.90mm Width) Exposed Pad package.This LED driver has 1 outputs.Surface Mount is used for mounting.This emerges as a AC DC Offline Switcher with high efficiency and reliability.The led light driver is capable of working normally at -40°C~125°C TJ.There are considerable benefits for Lighting.Based on the frequency of 625Hz~200kHz, it operates.It operates with 16 terminations.Undetermined failures will occur if the voltage supply is less than 11V.It consists of 2 segments.The mount is in the direction of Surface Mount.It is acceptable to have a maximum voltage of 17V.According to its characteristics, it is also classified into Display Drivers.When the maximum supply current is less than 5.8mA, this device is able to provide high efficiency.There is no current that can be supplied to the load.

CS1630-FSZ Features

Available in the 16-SOIC (0.154, 3.90mm Width) Exposed Pad package
Operating temperature of -40°C~125°C TJ
Frequency of 625Hz~200kHz
Supply voltage of 12V

CS1630-FSZ Applications

There are a lot of Cirrus Logic Inc.
CS1630-FSZ LED Driver ICs applications.

Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
