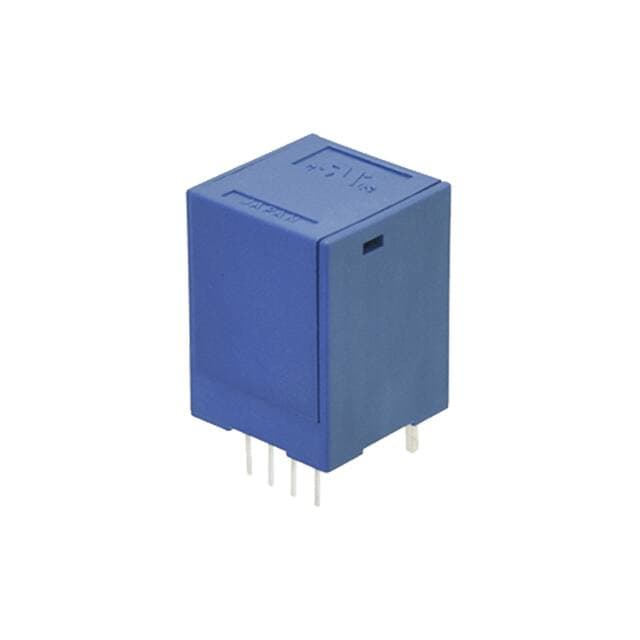

CUI CS05150B

Manufacturer No:

CS05150B

Manufacturer:

CUI

Package:

Module

Description:

CSXX150B Series Open Loop Sensor 1-Channel Bidirectional -10°C~75°C 14.25V~15.75V DC~40kHz 5A Accuracy-±2.4% Linearity-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS05150B information

CUI CS05150B technical specifications, attributes, parameters and parts with similar specifications to CUI CS05150B.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-10°C~75°C

Series
CSXX150B

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
14.25V~15.75V

Frequency
DC~40kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
25mA

Number of Channels
1

Polarization
Bidirectional

Accuracy
±2.4%

Response Time
3?s

Sensor Type
Open Loop

Linearity
±0.5%

For Measuring
AC

Current - Sensing
5A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CUI CS05150B.

CS05150B Overview

To ensure the safety of the current sensors, they are packaged in Module packages. These current sensors should provide a maximum current of 25mA.

CS05150B Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -10°C~75°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Open Loop
Supply Voltage: 14.25V~15.75V
Frequency: DC~40kHz
Sensing Current: 5A
Module Package

CS05150B Applications

There are a lot of CUI Devices
CS05150B Current Sensors applications.

Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
